DH-3UP1MS JET PUMP U SERIES WATER HEATER DH-3UP1MS
Rated Power : 3.6 kW\nPower Supply : 240 V , 50 Hz
Protects against fire & electrical hazards with 9 safety features
Protects against bacteria with Ag+ Crystal Material
Gentle & comfortable water texture with 3-way shower head
Blissful Showers
for Comfort & Wellbeing
Play time or bath time? Have both with Panasonic's safe and comfortable showering experience. Our safety features keep you protected during hot showers by preventing electric shocks, making it safe for your entire family.
Your Everyday Shower Clean & Worry-free

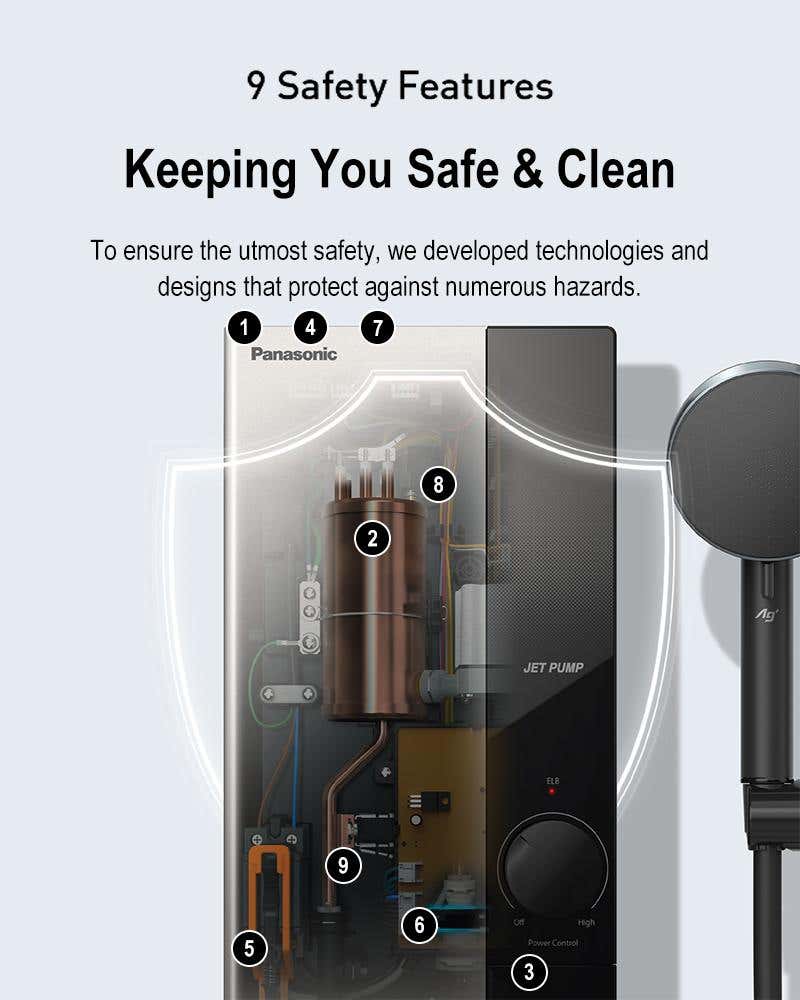

Leave your worries out of the bathroom. Panasonic U Series is built with 9 safety features that help to prevent electric shocks, fire & burn. The shower panel is water-splash proof to protect the internal components, while the Ag+ Crystal Material prevents the growth of bacteria for a more carefree shower experience.

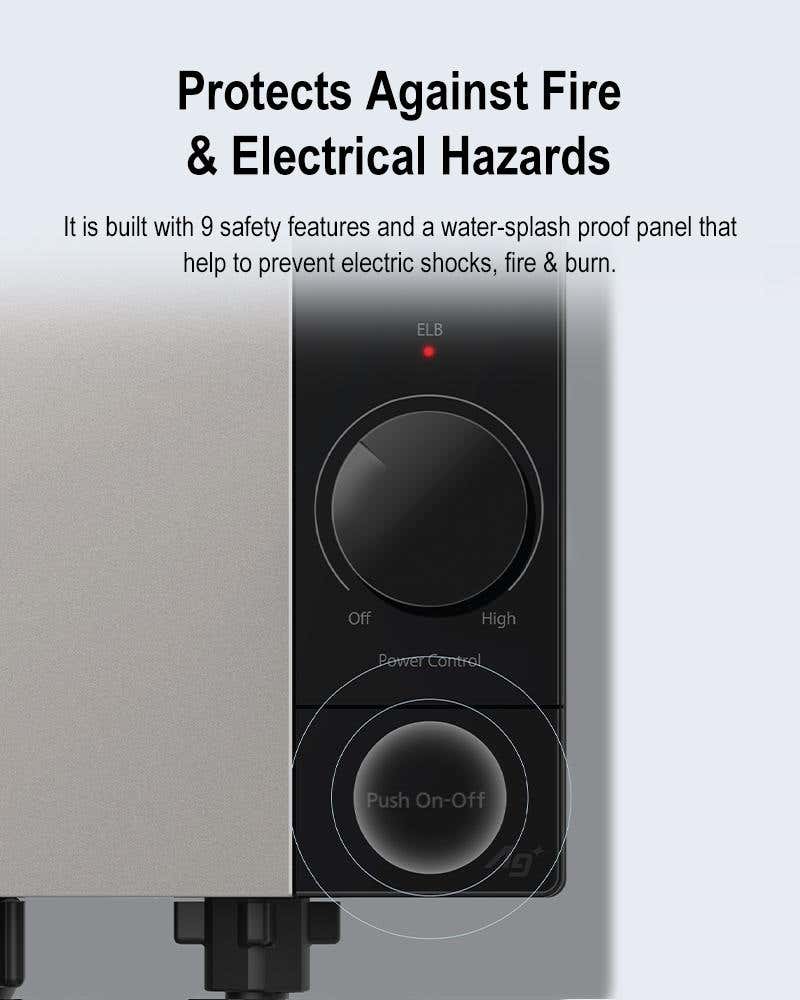

Protects against fire & electrical hazards
To ensure the utmost safety, we developed technologies and designs that provide protection for numerous hazards such as water & heat resistance, as well as preventing fire, burn, and electric shock.
Protects against bacteria
Commonly touched areas especially shower head, one push on/off switch, filter body, power control knob are made with the Ag+ Crystal Material to protect against bacteria.
Water Resistant & Splash Proof
The Water splash proof case cover in compliant with IEC60529 (IP2X) for ultimate protection. Designed with water resistance on the joint between the front plate and back plate, to prevent fire and electric shock.
Prevents Overheating & Fire
With a highly-durable copper heater unit is made from self-extinguish, non-combustible copper for a higher level of heat resistance to prevent overheating and fire.
One Push to Switch On/Off
Conveniently switch off main power line and water supply line directly with One Push On/Off switch.
Protects against Electric Shock
IEC 60529 (IP2X) compliant. The insulated structure protects you against danger like an electric shock, by providing an enclosure against access to hazardous parts with a finger or foreign objects.
Safety Protection against Current Leakage
Complete prevention against electric shock. The Built-in Earth Leakage Breaker (ELB) automatically cuts off power supply during current leakage, with double safety as both neutral and live lines will be cut off.
Detects Water Pressure to Prevent Overheating
The Water Flow Sensor automatically cuts off power supply when the water flow is too low or absent. This prevents the water temperature from becoming uncomfortably hot, as well as cases of overheating.
Built to Prevent Fire
The external casing is non-flammable material compliance and is built with UL-94-V0 classification material (self-extinguish) to prevent fire.
Cuts Off Power Supply during Component Failure
The Manual Reset Thermostat cuts off power supply in the event of a component failure that causes continuous heating during abnormal conditions, to prevent fire.
Prevents against First-Degree Burn
When the water temperature exceeds the hazard limit of 55°C, the Auto Thermal Cut-Out feature cuts off the power supply to prevent first-degree burn.
Relax & Refresh with Comfortable Shower
Start and end the day with comfortable showers. Prepare to rest your body with soft and delicate water texture, that is sure to provide you a calming and relaxing showering experience.
Low Noise Operation
The low noise DC pump gives you both a powerful water flow and low noise operation. You can feel free to take a shower late at night or after the family has gone to sleep. *Made In Japan DC pump
Gentle & Comfortable Water Texture
Easily switches between shower textures by moving the lever left and right with one hand. The improved shower head design creates a shower effect that feels good on the skin. Comes with 3 different water textures - ‘normal, wide, and spot’ for a spa-like shower at home.
Normal
Mix-spray combining soft yet revitalising water texture, for a gentle and relaxing shower.
Cleanse your body with soothing droplets for a wake-up call before you take on the day.
Wide
Intense jets of fine micro-droplets to cleanse your body from lethargy. Take relaxation up a notch after a long day, to ease your body into resting mode.
Spot
Concentrated spray that mimics the feeling of a massage. The targeted spray is ideal for relaxing the muscle and tensed areas, perfect for after an intense workout or stressful day.

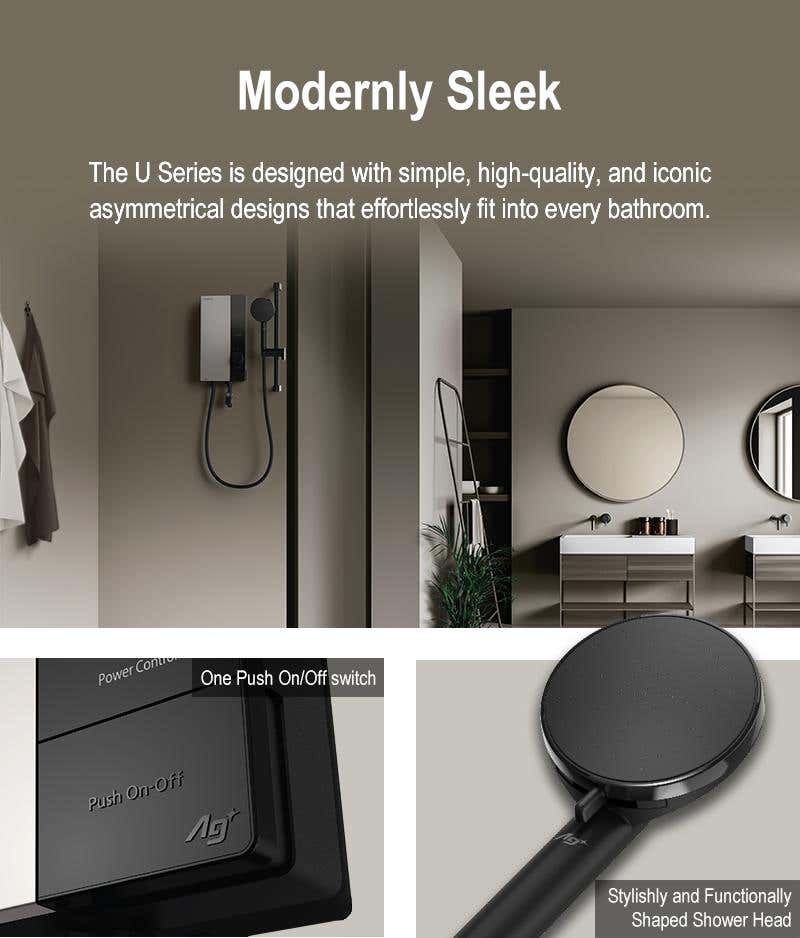

Modernly Sleek
The U Series is designed with simple, high-quality, and iconic asymmetrical designs that effortlessly fit into every bathroom.
-
Rated Power : 3.6 kW\nPower Supply : 240 V , 50 Hz
-
Protects against fire & electrical hazards with 9 safety features
-
Protects against bacteria with Ag+ Crystal Material
-
Gentle & comfortable water texture with 3-way shower head

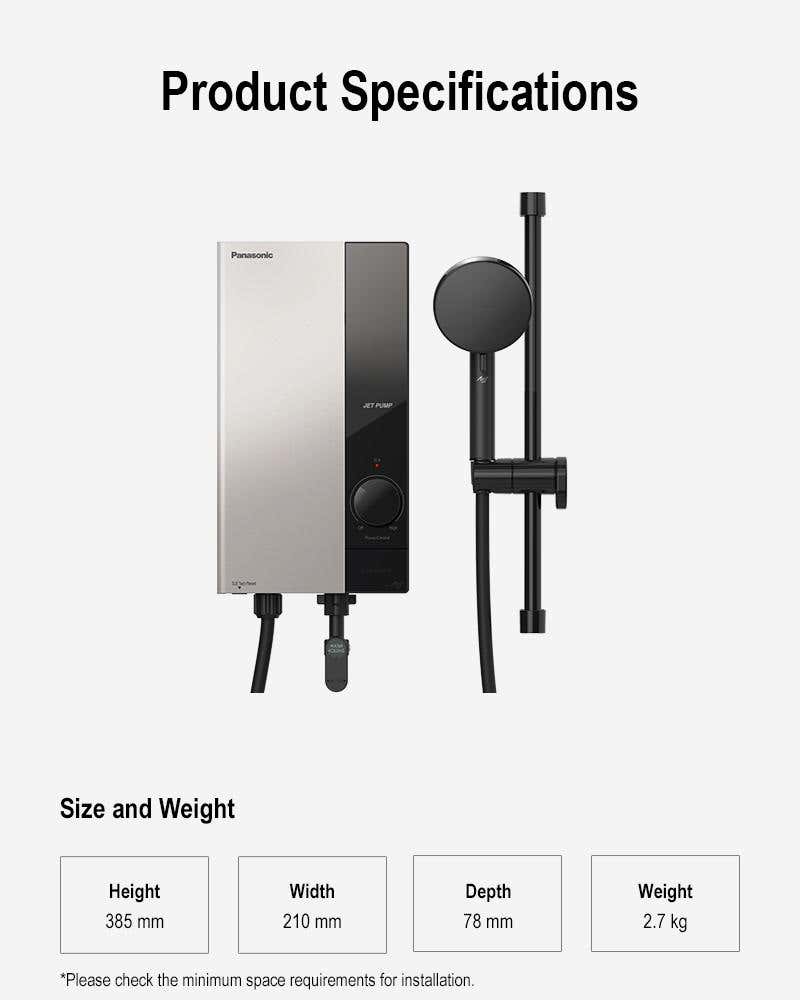

Size and Weight
- Height
- 385mm
- Width
- 210mm
- Depth
- 78mm
- Weight
- 2.7kg
*Please check the minimum space requirements for installation.

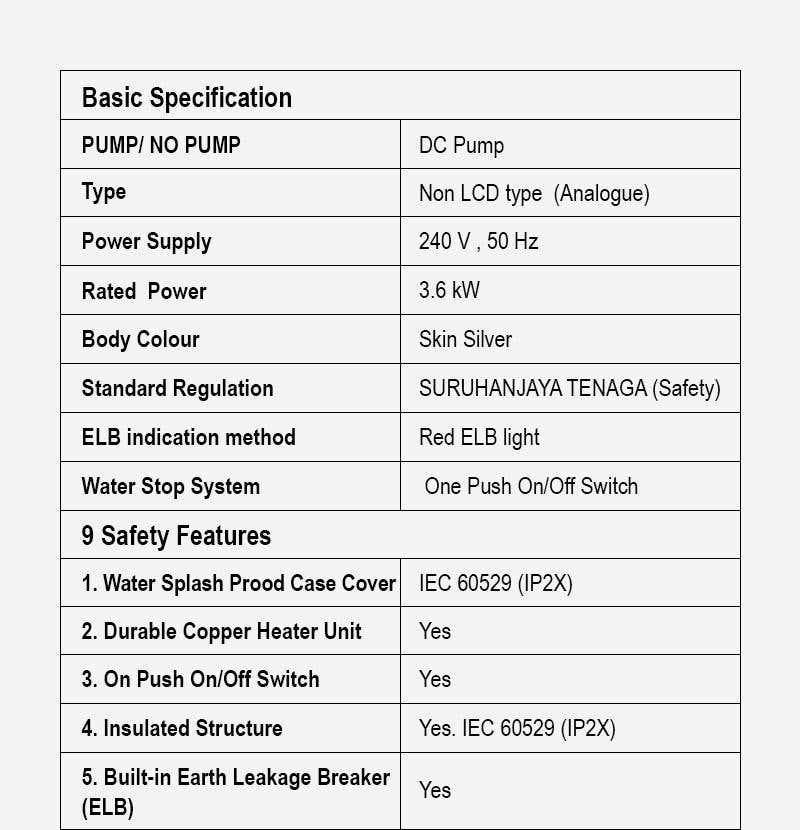

| Basic Specification | PUMP/ NO PUMP | DC Pump | |
| TYPE | Non LCD type (Analogue) | ||
| Power Supply | 240 V, 50 Hz | ||
| Rated Power | 3.6 kW | ||
| Water Pressure | Minimum | 0.05 kgf/cm² | |
| Maximum | 3.87 kgf/cm² | ||
| Dimensions (h x w x d) mm | 385 x 210 x 78 | ||
| Main Unit Weight (kg) | 2.7 kg | ||
| Body Colour | Skin Silver | ||
| Standard Regulation | SURUHANJAYA TENAGA (Safety) | ||
| ELB indication method | Red ELB light | ||
| Water Stop System | One Push On/Off Switch | ||
| 9 Safety Features | 1. Water Splash Prood Case Cover | IEC 60529 (IP2X) | |
| 2. Durable Copper Heater Unit | Yes | ||
| 3. On Push On/Off Switch | Yes | ||
| 4. Insulated Structure | Yes. IEC 60529 (IP2X) | ||
| 5. Built-in Earth Leakage Breaker (ELB) | Yes | ||

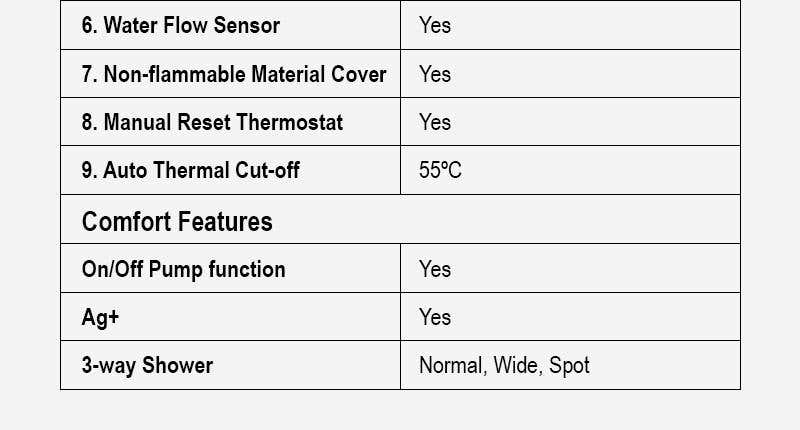

| 6. Water Flow Sensor | Yes | ||
| 7. Non-flammable Material Cover | Yes | ||
| 8. Manual Reset Thermostat | Yes | ||
| 9. Auto Thermal Cut-off | 55ºC | ||
| Comfort Features | U-memory | - | |
| U-mode | - | ||
| On/Off Pump function | No | ||
| Ag+ Antibacterial material | Yes | ||
| 3-way Shower | Normal, Wide, Spot | ||
