Premium All-In-One Music System
Newly Developed Speaker Units & Acoustic Lens
JENO Engine (Jitter Elimination and Noiseshaping Optimization)
Load Adaptive Phase Calibration (w/o Calibration function)
Space Tune™
Twin Power Supply Circuit System
CD High-Res Re-master
Premium Class Music System | OTTAVA™ f
The SC-C70MK2 Premium All-in-One Music System features newly developed Speaker Units & Acoustic Lens, 3x JENO Engines (Jitter Elimination and Noise-shaping Optimisation), Space Tune™, iOS device calibration, compatibility with a diverse range of music sources and a refined timeless design.
Newly Developed Speaker Units & Acoustic Lens
The 8-cm woofer unit offers significantly better basic characteristics as a result of various improvements made, such as the reduced weight of the voice coil, enhanced airflow and increased rigidity of the diaphragm. The woofer provides superb response and sound clarity to reproduce mid- and high-frequency sound comfortable to the ear. The high-res-ready 2-cm dome tweeter unit features a lighter silk diaphragm to provide beautiful lingering sound. What’s more, the acoustic lens is optimised for the new tweeter shape and enhances the expansiveness of reproduced sound.
3 JENO Engines
In order to faithfully reproduce the information of rich sounds with the 2.1ch configuration, three “JENO Engine” full digital amplifier units have been equipped. In addition to utilising the excellent processing capacity of the three units and faithfully driving the left and right channels and subwoofer, “Space Tune”, which optimises the sound quality depending on the installation status, has been realised.
Space Tune™

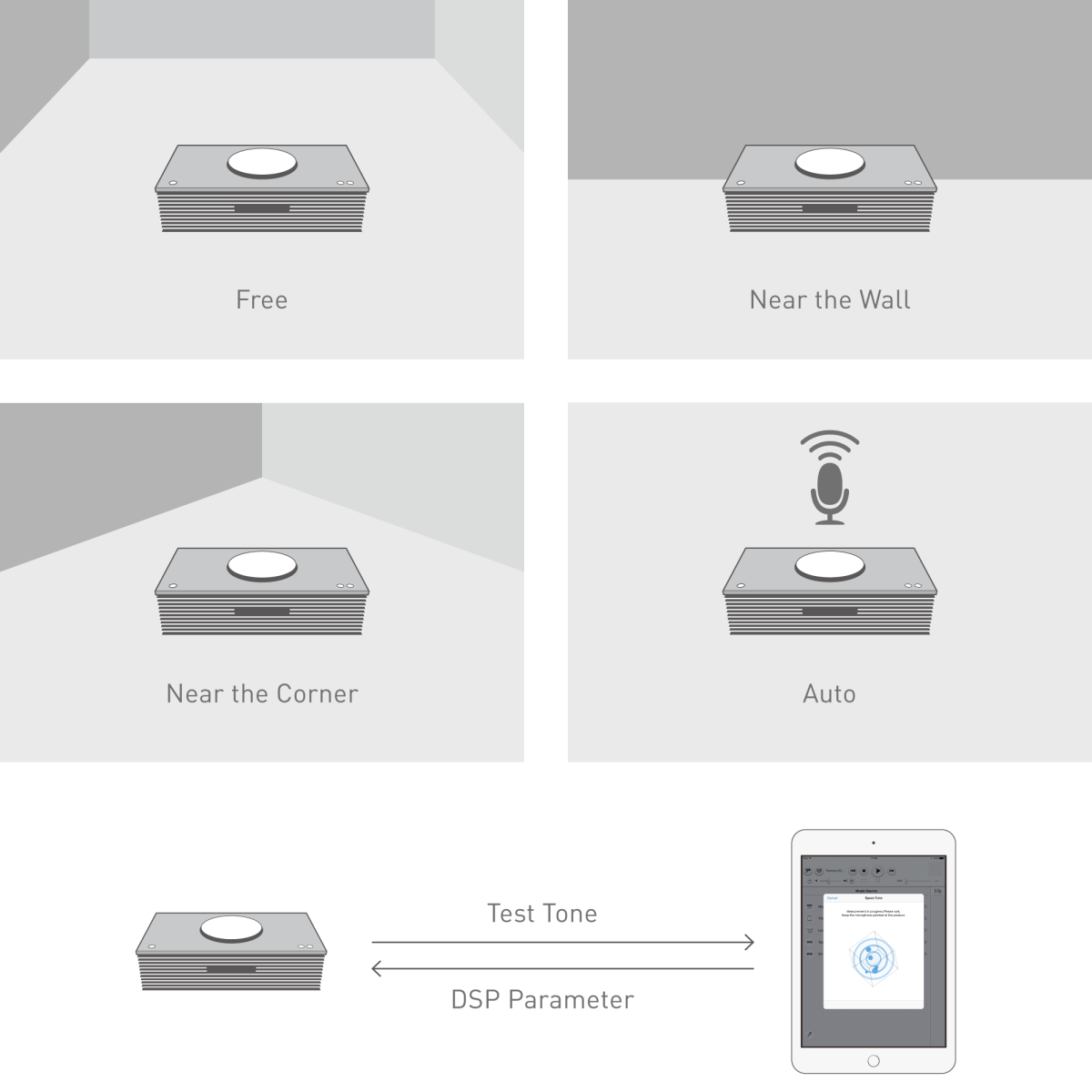

The SC-C70MK2 features Space Tune™ Auto to achieve optimally balanced sound easily with the press of a button. This function measures test tones played through a mic that is built into the SC-C70MK2 to analyse the distance to walls and the effect of reflections. It then automatically optimises the sound field. In addition, the Space Tune™ function includes 3 presets (Free, Near the Wall, and Near the Corner) for easy setting, and uses a Technics Audio Center app to precisely adjust the sound quality to the listening position.

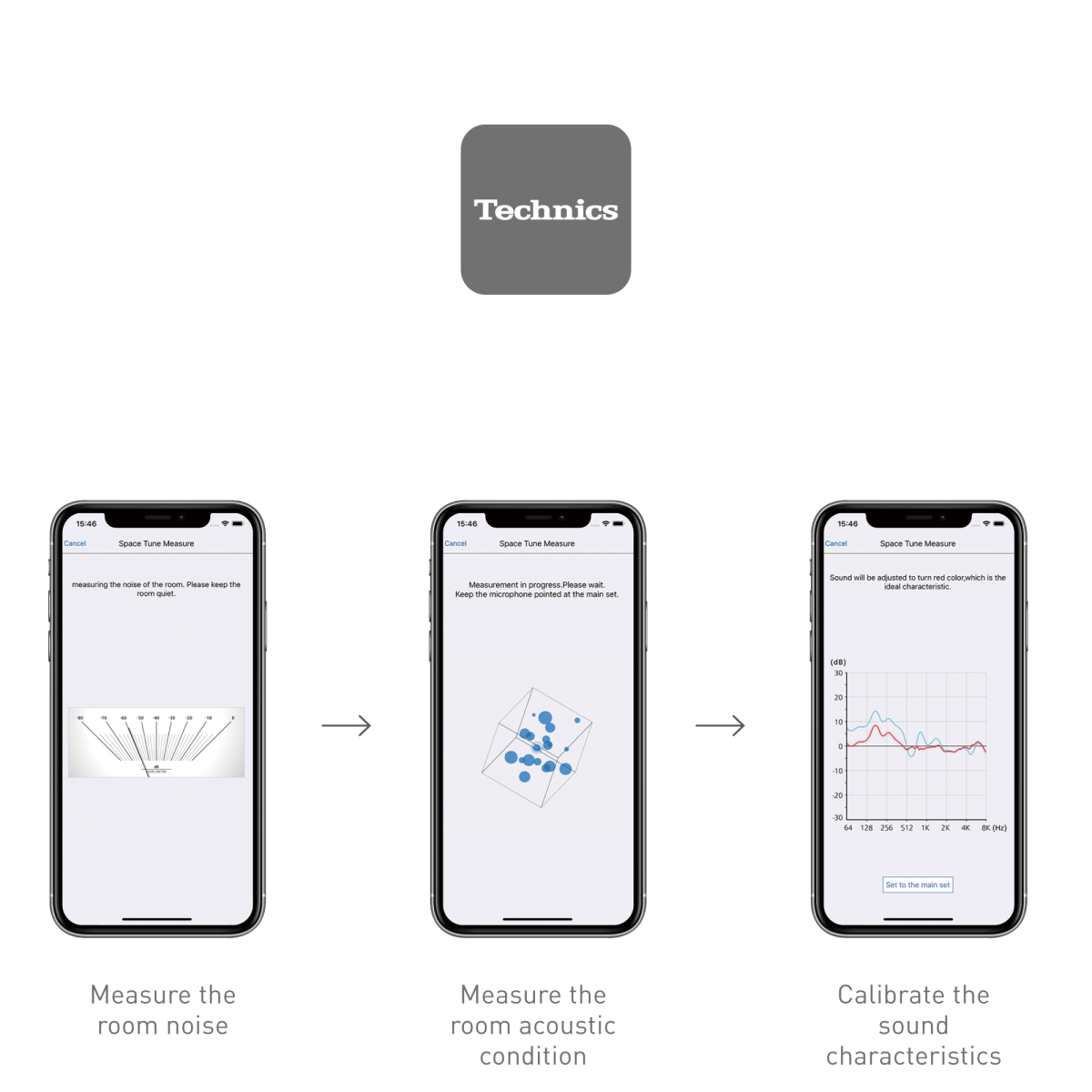

iOS device calibration is available for more precise adjustment
Measure room acoustic conditions by using microphone integrated in iOS devices.
Tune DSP parameters to optimise acoustic performance.

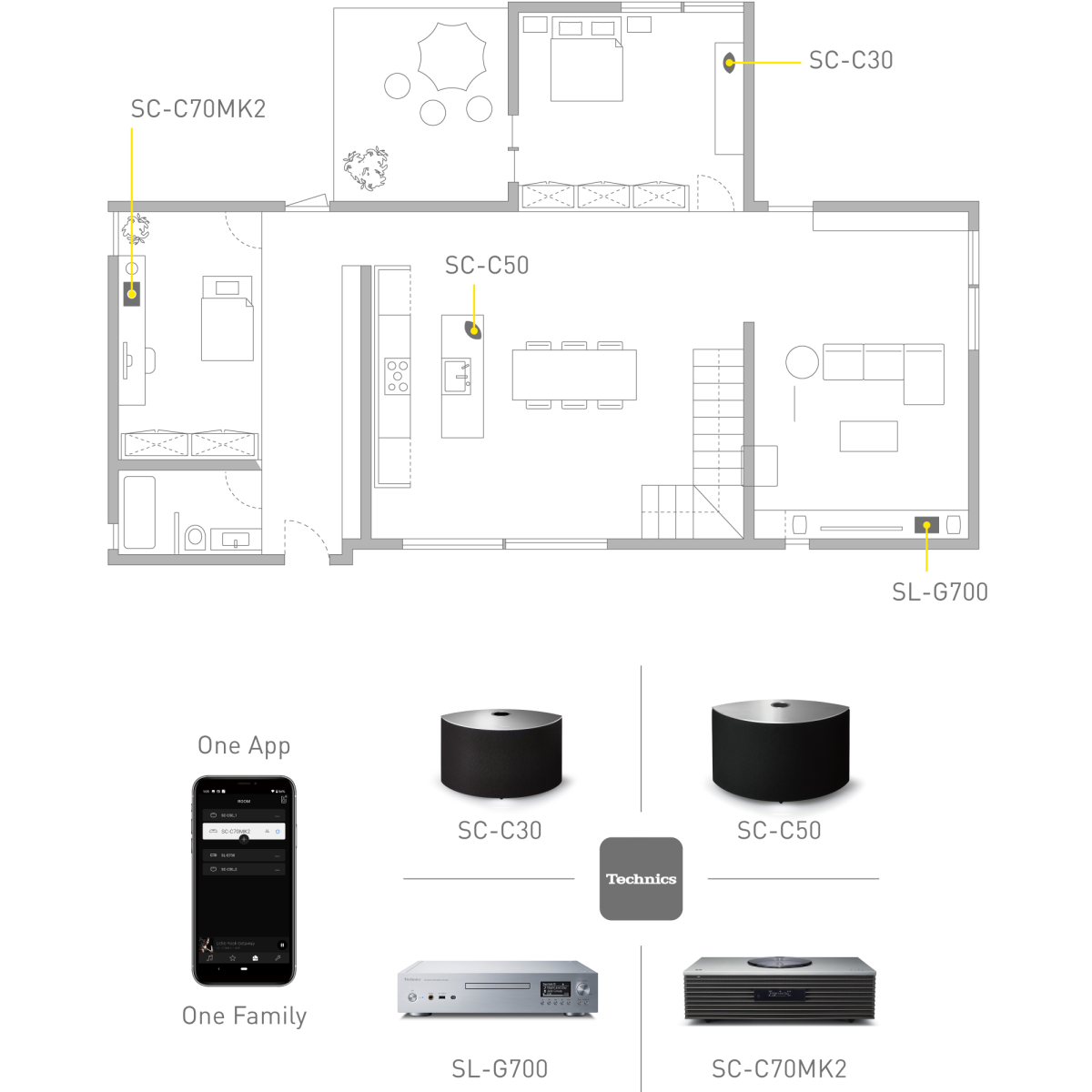

Multi-room
With a number of Google Cast™ speakers, the variety of music streaming services can be played in several rooms, or different music can be played from room to room*. In addition, if you use Technics Audio Center app and have another app compatible Technics devices, you can also enjoy other music source in multi-room such as Bluetooth, AUX, Optical input, USB, Internet radio and also OTTAVA™ f SC-C70MK2 compatible streaming music. * The Google Home App is required.
Favourite Function
Up to 9 presets can be set on the main unit, such as favourite internet radio stations, a DEEZER playlist, and USB songs. This makes it possible to listen to your favourite music without even starting up an app.

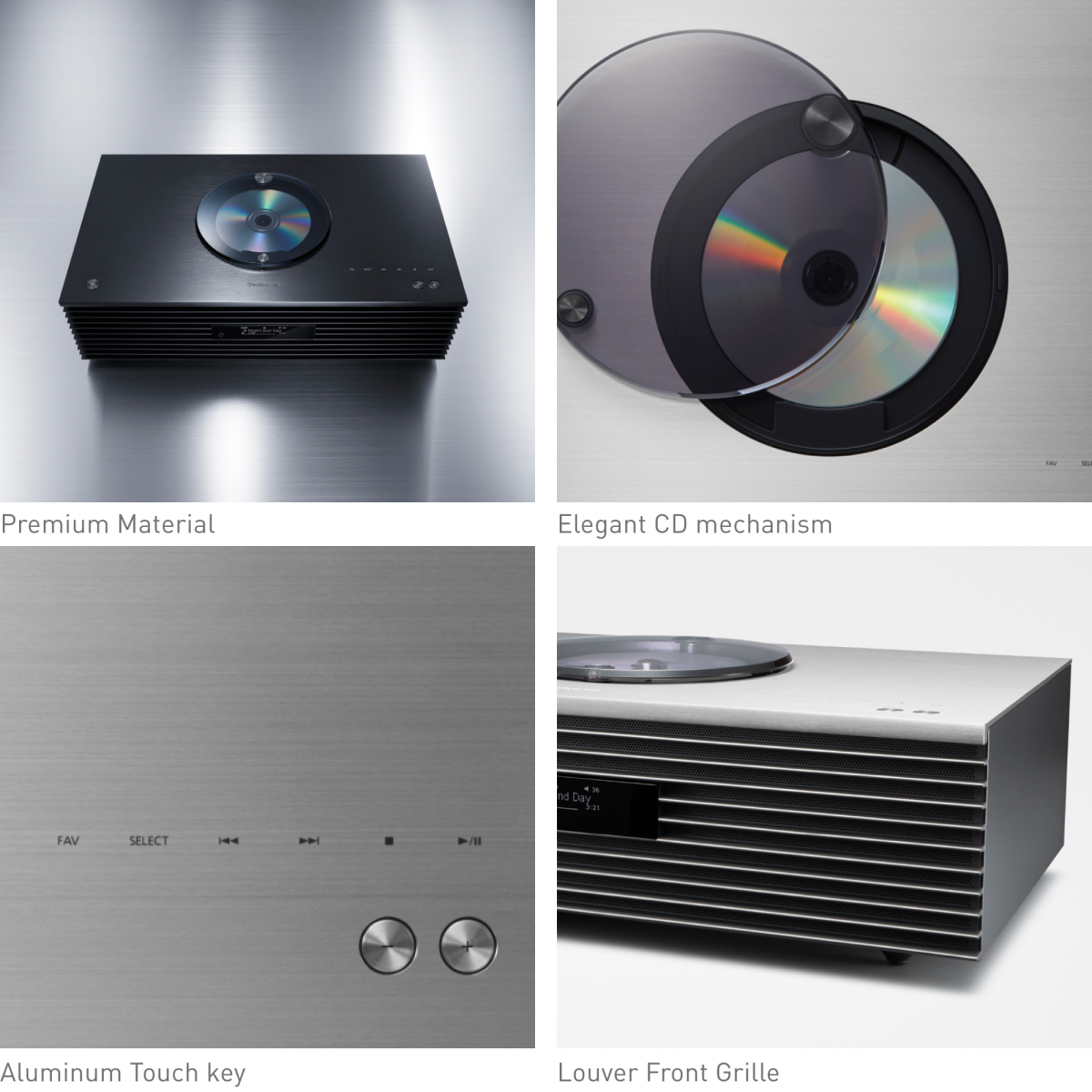

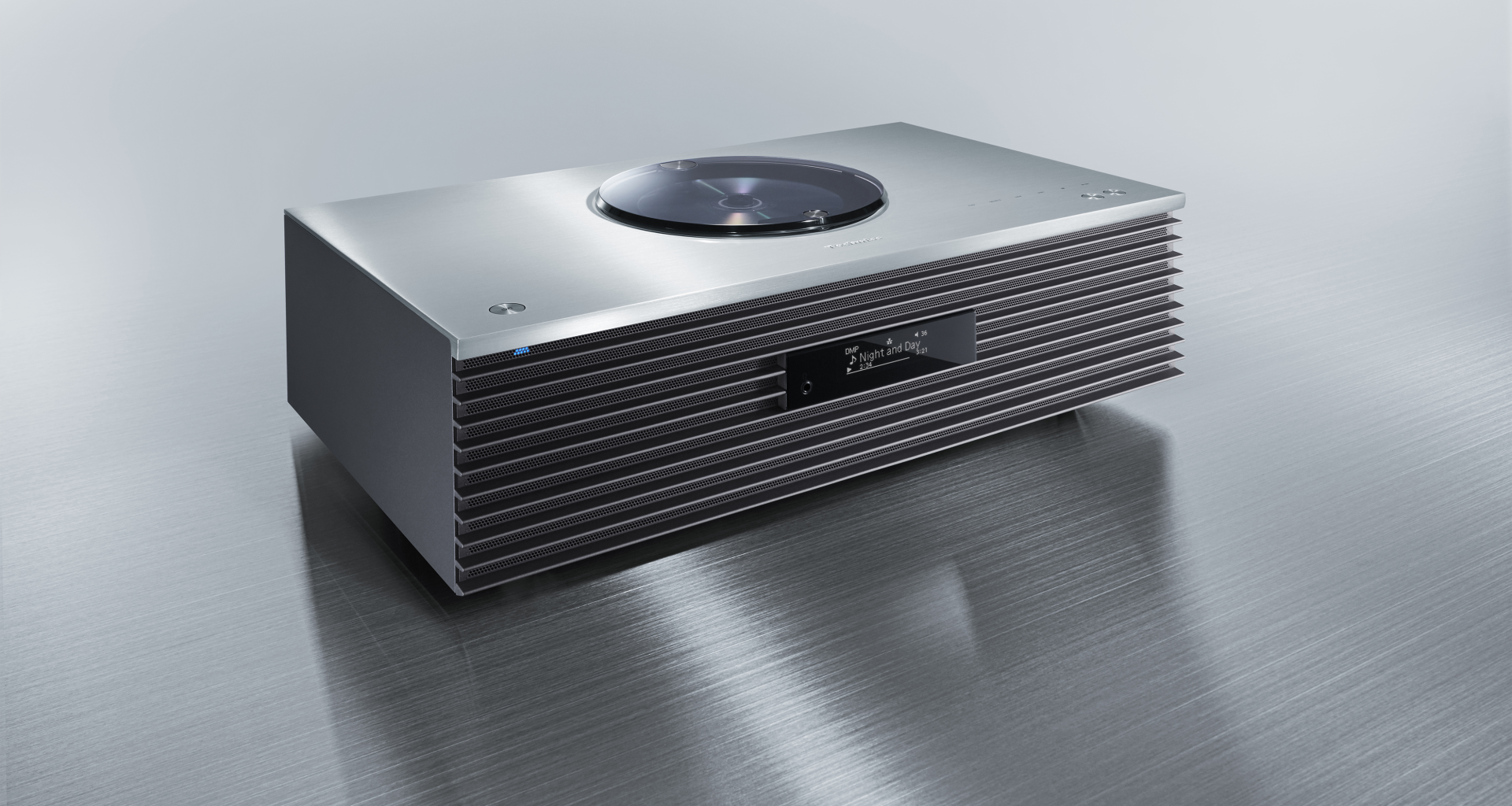

Functional beauty that has been further refined
Following the elegant design of the previous C70 by combining high sound quality and a sophisticated design. The C70MK2 features a dark silver color to create an even more refined design. Furthermore, an all-black variation has been added.The more you use it, the more your enjoyment of experiencing music will deepen.
Functional beauty that has been further refined
Following the elegant design of the previous C70 by combining high sound quality and a sophisticated design. The C70MK2 features a dark silver color to create an even more refined design. Furthermore, an all-black variation has been added.The more you use it, the more your enjoyment of experiencing music will deepen.
Compatible with a variety of music sources
The SC-70MK2 supports a variety of music
sources including CD, radio, optical digital input (including TVs), coaxial digital input, USB input, and more.
-
Newly Developed Speaker Units & Acoustic Lens
-
JENO Engine (Jitter Elimination and Noiseshaping Optimization)
-
Load Adaptive Phase Calibration (w/o Calibration function)
-
Space Tune™
-
Twin Power Supply Circuit System
-
CD High-Res Re-master
Size and Weight
- Height
- 143mm
- Width
- 450mm
- Depth
- 280mm
- Weight
- 8.0kg
*Approx.
The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Panasonic Corporation is under license. Other trademarks and trade names are those of their respective owners.
Google and Chromecast are trademarks of Google LLC.
AirPlay, iPad, iPhone, and iPod touch are trademarks of Apple Inc., registered in the U.S. and other countries.
"Direct Stream Digital", DSD and their logos are trademarks of Sony Corporation.
Wi-Fi®, Wi-Fi CERTIFIED™ and Wi-Fi Protected Setup™ are marks of the Wi-Fi Alliance.
| Accurate Digital Technology | JENO Engine (Jitter Elimination and Noise-shaping Optimization) Load Adaptive Phase Calibration (w/o Calibration function) Space Tune™ Twin Power Supply Circuit System Re-master | ||
| Noiseless Signal Technology | Twin Power Supply Circuit System Optimally Activated Circuit System CD High-Res Re-master | ||
| Emotive Acoustic Technology | Acoustic Lens and Louver Dual bass reflex port | ||
| Output Power | Front speaker: 30 W + 30 W (1 kHz, T.H.D. 1.0 %, 6Ω, 20 kHz LPF) Subwoofer : 40 W (70 Hz, T.H.D. 1.0 %, 4Ω, 20 kHz LPF) | ||
| Speaker Unit | Woofer : 8 cm Cone Type x2 / Tweeter: 2 cm Dome Type x 2 / Subwoofer: 12 cm Cone Type | ||
| Analogue Input Terminal | AUX IN x1 (φ3.5mm) | ||
| Digital Input Terminal | Optical Digital x1, USB-A | ||
| Headphone Output | Yes (Ø3.5 mm) | ||
| Disc Compatibility | Audio CD, CD-R/CD-RW (CD-DA, Discs recorded and finalized on recording devices) | ||
| USB-A | iPod/iPhone/iPad | No | |
| Support Codec | WAV | Yes (32, 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384 kHz / 16, 24, 32 bit) | |
| FLAC | Yes (32, 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384 kHz / 16, 24 bit) | ||
| DSD | Yes (2.8 MHz, 5.6 MHz, 11.2MHz) | ||
| AIFF | Yes (32, 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384 kHz / 16, 24, 32 bit) | ||
| ALAC | Yes (32, 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384 kHz / 16, 24 bit) | ||
| AAC | Yes (32, 44.1, 48, 88.2, 96 kHz / 16-320 kbps) | ||
| MP3 | Yes (32, 44.1, 48 kHz / 16-320 kbps) | ||
| DLNA | WAV | Yes (32, 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384 kHz / 16, 24, 32 bit) | |
| FLAC | Yes (32, 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384 kHz / 16, 24 bit) | ||
| DSD | Yes (2.8 MHz, 5.6 MHz, 11.2MHz) | ||
| AIFF | Yes (32, 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384 kHz / 16, 24, 32 bit) | ||
| ALAC | Yes (32, 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384 kHz / 16, 24 bit) | ||
| AAC | Yes (32, 44.1, 48, 88.2, 96 kHz / 16-320 kbps) | ||
| MP3 | Yes (32, 44.1, 48 kHz / 16-320 kbps) | ||
| Ethernet Interface | LAN (100 Base-TX/10 Base-T) | ||
| Wi-Fi | IEEE 802.11 a/b/g/n/ac 2.4 GHz / 5 GHz Band | ||
| Google Cast™ | Yes | ||
| Works with Google Assistant | Yes | ||
| AirPlay 2 | Yes | ||
| Bluetooth® (Support codec) | Yes (AAC, SBC) | ||
| TIDAL / Spotify | Yes* / Yes* | ||
| Tuner | DAB/DAB+/FM | ||
| Power Supply | AC220-240 V, 50 Hz / 60 Hz | ||
| Power Consumption | 45 W | ||
| Dimensions (W x H x D) | 450 x 143 x 280 mm | ||
| Weight | Approx. 8.0kg | ||
| Accessories | Remote Control, AC Cord, DAB Indoor Antena 、Batteries for Remote Control | ||
