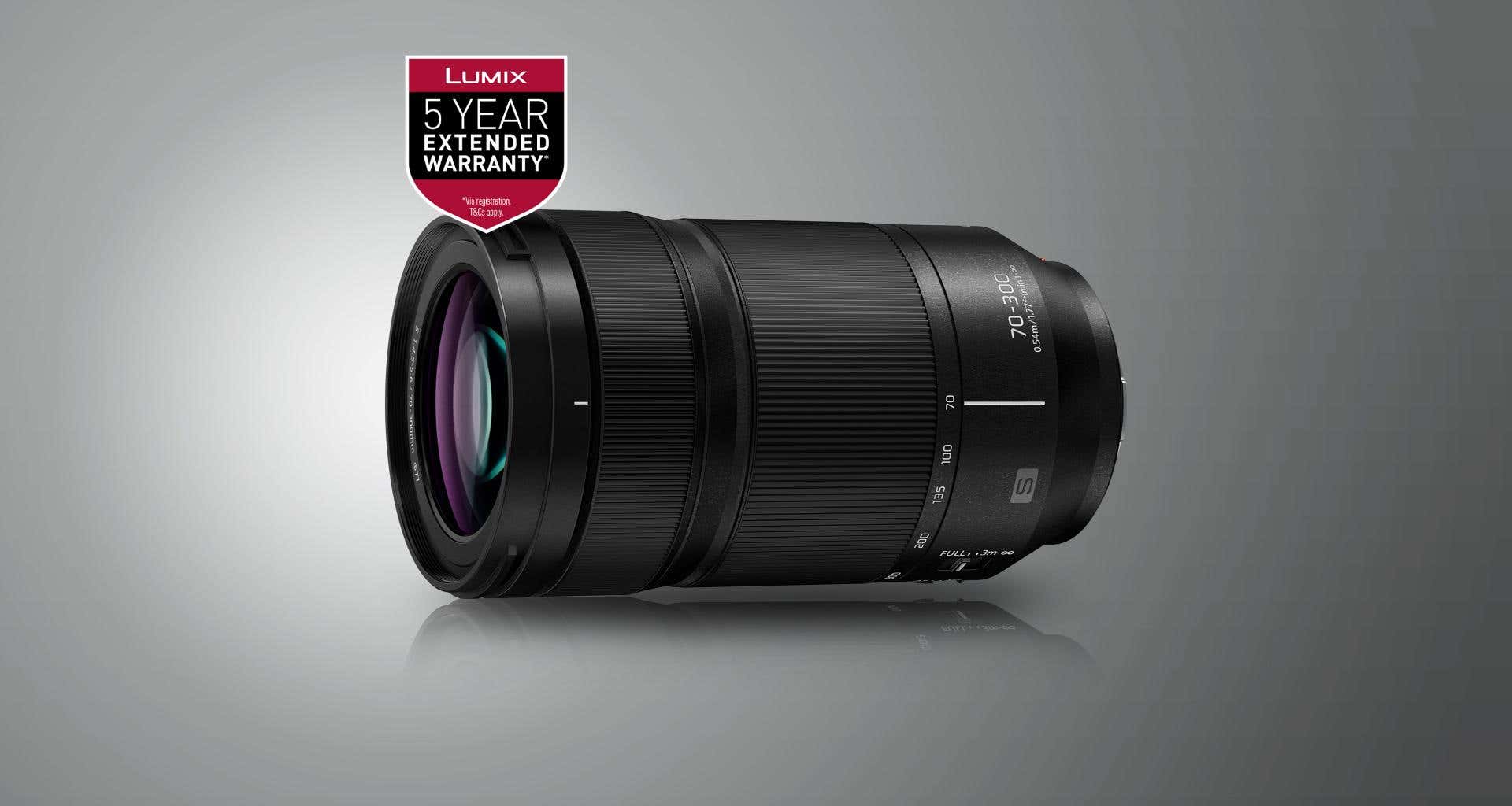

LUMIX S Series 70-300mm / F4.5-5.6 / Macro O.I.S
Compact, Lightweight & Versatile 70-300mm Telephoto Zoom Lens.
Macro capability with a closest focusing distance of 0.54m (at 70mm) / 0.74m (at 300mm)
Built-in O.I.S with 5-Axis Dual I.S 2 Compatibility for ultra-sharp photos and smooth video.
Confidence inspiring dust, splash and freeze-resistant construction.

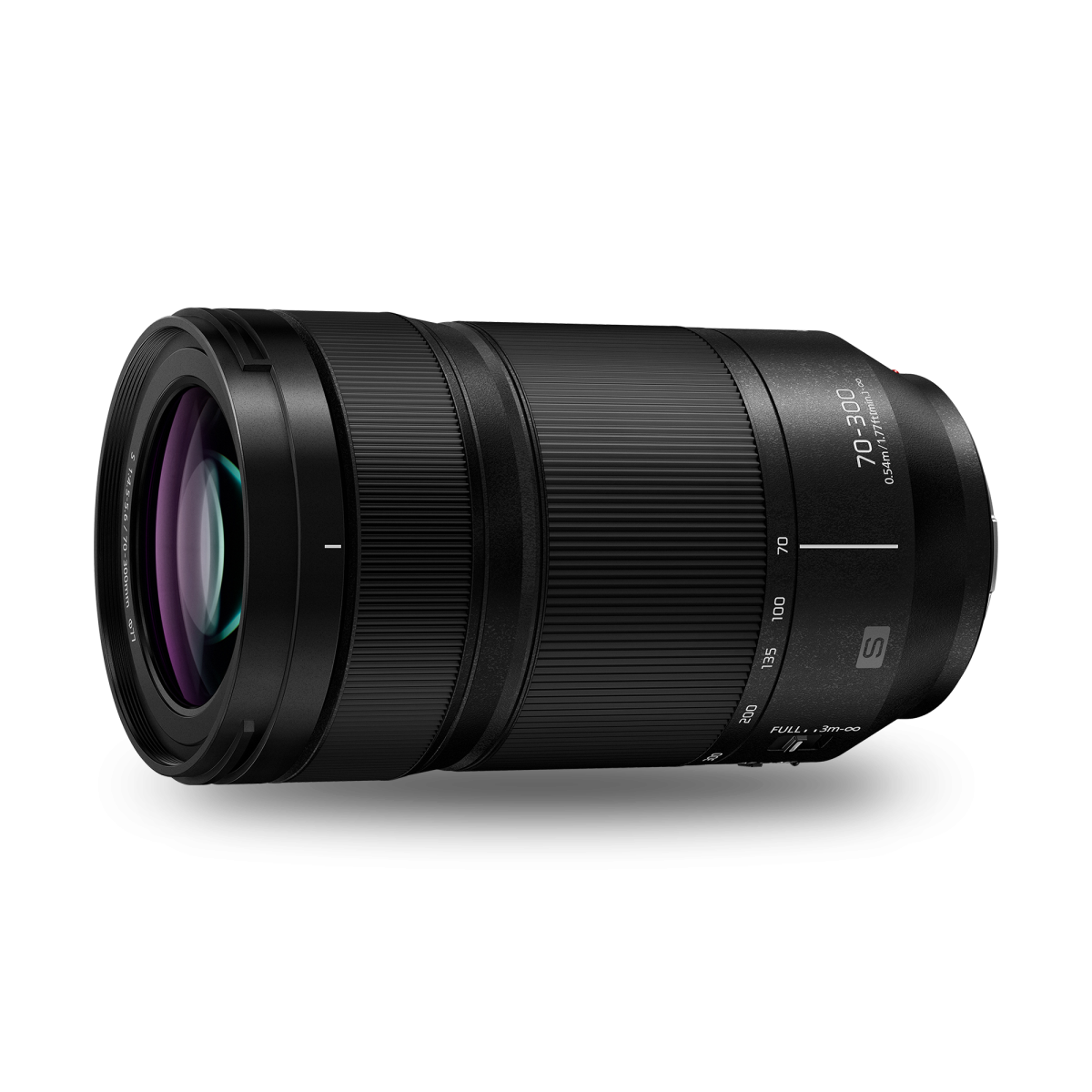

LUMIX S 70-300mm F4.5-5.6 MACRO O.I.S.
A compact telephoto zoom with macro shot capability.
Versatile 70-300mm Zoom with Outstanding Image Quality
The LUMIX S 70-300mm telephoto zoom lens suits a broad range of shooting opportunities and maximum creative versatility. Its compact and lightweight design features a rugged dust and splash-resistant construction making it ideal for outdoor scenarios such as wildlife and sports photography.
Superb Close-up Performance
With a minimum focusing distance of just 0.74m at 300mm* the lens offers a maximum magnification of 0.5x, enabling you to zoom in on small objects to faithfully capture details, textures and colours in the most intricate subjects. * Closest focusing distance of 0.54m (at 70mm) / 0.74m (at 300mm).
Beautifully Rendered Bokeh
The newly designed 11-blade circular aperture diaphragm offers impressive rendition of out-of-focus areas at wider apertures, and detailed, eye-catching starbursts when shooting concentrated light sources such as the sun with a narrower aperture setting.
O.I.S for Ultra-Sharp Photos and Super Steady Video
The 70-300mm lens features Dual I.S 2 compatibility, offering optical image stabilisation across 5-axis of movement. Its 5.5-stop compensation* improves image sharpness in photos and reduces camera shake in video for razor sharp, professional quality results. * Based on the CIPA standard (Yaw/Pitch direction: focusing distance f=300mm, when LUMIX S5 is used).

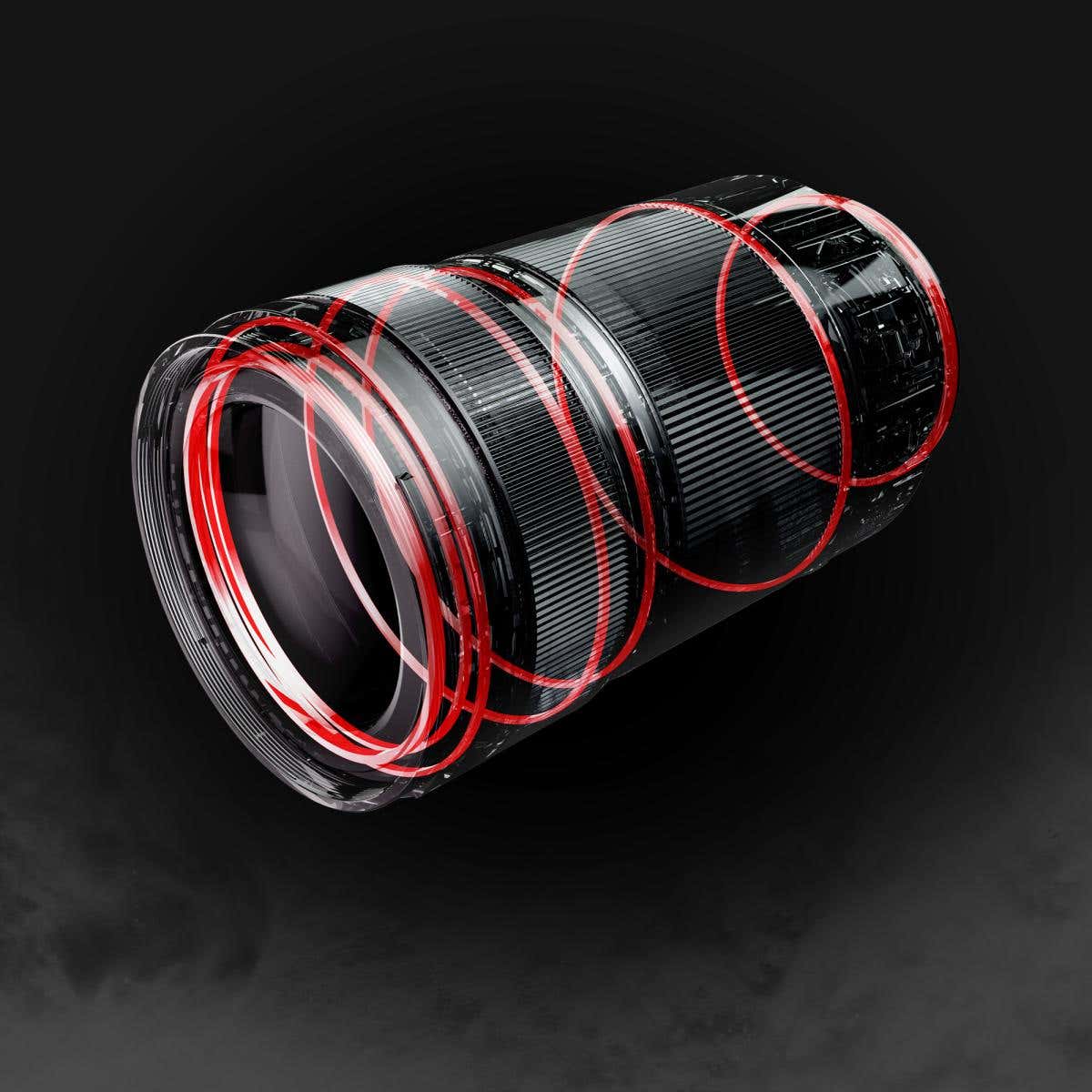

Dust, Splash and Freeze-resistant Design
Let the rugged construction of the LUMIX S 70-300mm lens inspire you with the confidence to keep shooting. Its dust and splash-resistant construction* complement the weather sealing in our S Series cameras, allowing you to shoot in dusty, wet or cold environments with peace of mind. * Dust and Splash Resistant does not guarantee that damage will not occur if this lens is subjected to direct contact with dust and water.
Ultra-fast, Video Compatible Autofocus
The lens offers fast, accurate autofocus and smooth aperture changes, equipping the modern content creator with the ability to shoot ultra-sharp photos and cinematic quality video, even in varying lighting conditions.

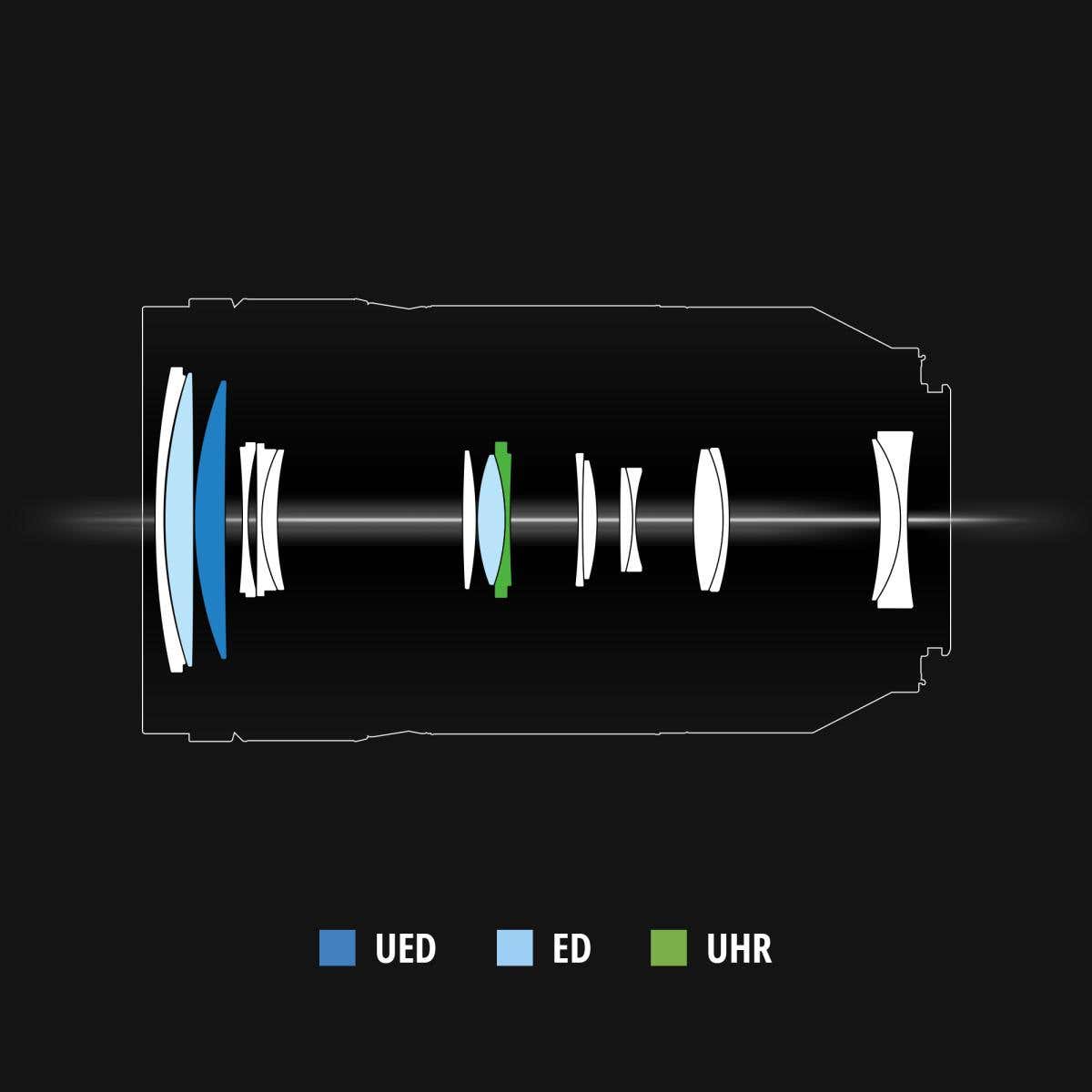

Optimised Lens Construction
The S-R70300 Lens construction delivers true-to-life detail, despite its compact size. The 70-300mm lens features 17 elements in 11 groups including 2 ED, 1 UED and 1 UHR lens elements to minimise aberrations and deliver maximum detail with faithful colour reproduction.
S-R70300 MTF Chart
Offering outstanding sharpness and resolution throughout the entire zoom range, the 70-300mm is ideal for the LUMIX full-frame system. It delivers maximum creative versatility in a compact, lightweight, rugged design without compromising on image quality. Note: For lenses that are capable of compensating distortion, the horizontal axis shows the distance from the centre of the corrected image.
-
Compact, Lightweight & Versatile 70-300mm Telephoto Zoom Lens.
-
Macro capability with a closest focusing distance of 0.54m (at 70mm) / 0.74m (at 300mm)
-
Built-in O.I.S with 5-Axis Dual I.S 2 Compatibility for ultra-sharp photos and smooth video.
-
Confidence inspiring dust, splash and freeze-resistant construction.
Size and Weight
- Height
- 84mm
- Width
- 84mm
- Depth
- 148mm
- Weight
- 790g
Approximately. Weight excluding lens cap, lens rear cap and lens hood. Length from the tip of the lens to the base side of the lens mount.
| General | Lens Construction | 17 elements in 11 groups (2 ED lenses, 1 UED lens, 1 UHR lens) | |
| Mount | L-Mount | ||
| Optical Image Stabiliser | Yes | ||
| Focal Length | f=70-300mm | ||
| Aperture Type | 11 diaphragm blades / Circular aperture diaphragm | ||
| Maximum Aperture | F4.5 (Wide) - F5.6 (Tele) | ||
| Minimum Aperture | F22 | ||
| Closest Focusing Distance | 0.54m/1.77ft (at focal length 70mm) / 0.74m/2.43ft (at focal length 300mm) | ||
| Maximum Magnification | 0.5x (at focal length 300mm) | ||
| Diagonal Angle of View | 34°(Wide) - 8.3°(Tele) | ||
| Dust and Splash Resistant | Yes* | ||
| Recommended Operating Temperature | -10℃ to 40℃ (14℉ to 104℉) | ||
| Filter Size | φ77mm | ||
| Max. Diameter | φ84.0mm / 3.31inch | ||
| Overall Length | Approx.148.0mm / 5.83inch (from the tip of the lens to the base side of the lens mount) | ||
| Weight | Approx. 790g / 1.75lb (excluding lens cap, lens rear cap and lens hood) | ||
| Standard Accessories | Lens cap, Lens rear cap, Lens hood | ||
| NOTE | NOTE | *Dust and Splash Resistant does not guarantee that damage will not occur if this lens is subjected to direct contact with dust and water. | |
