LUMIX S 26MM F8 PANCAKE LENS
Overall length of 18.1mm and weight of 58g (approximately)
26mm wide-angle lens
F8 fixed aperture and manual focus
By clicking on the “Subscribe” button, I have taken knowledge of and agree to the Privacy Policy and Terms of Use.

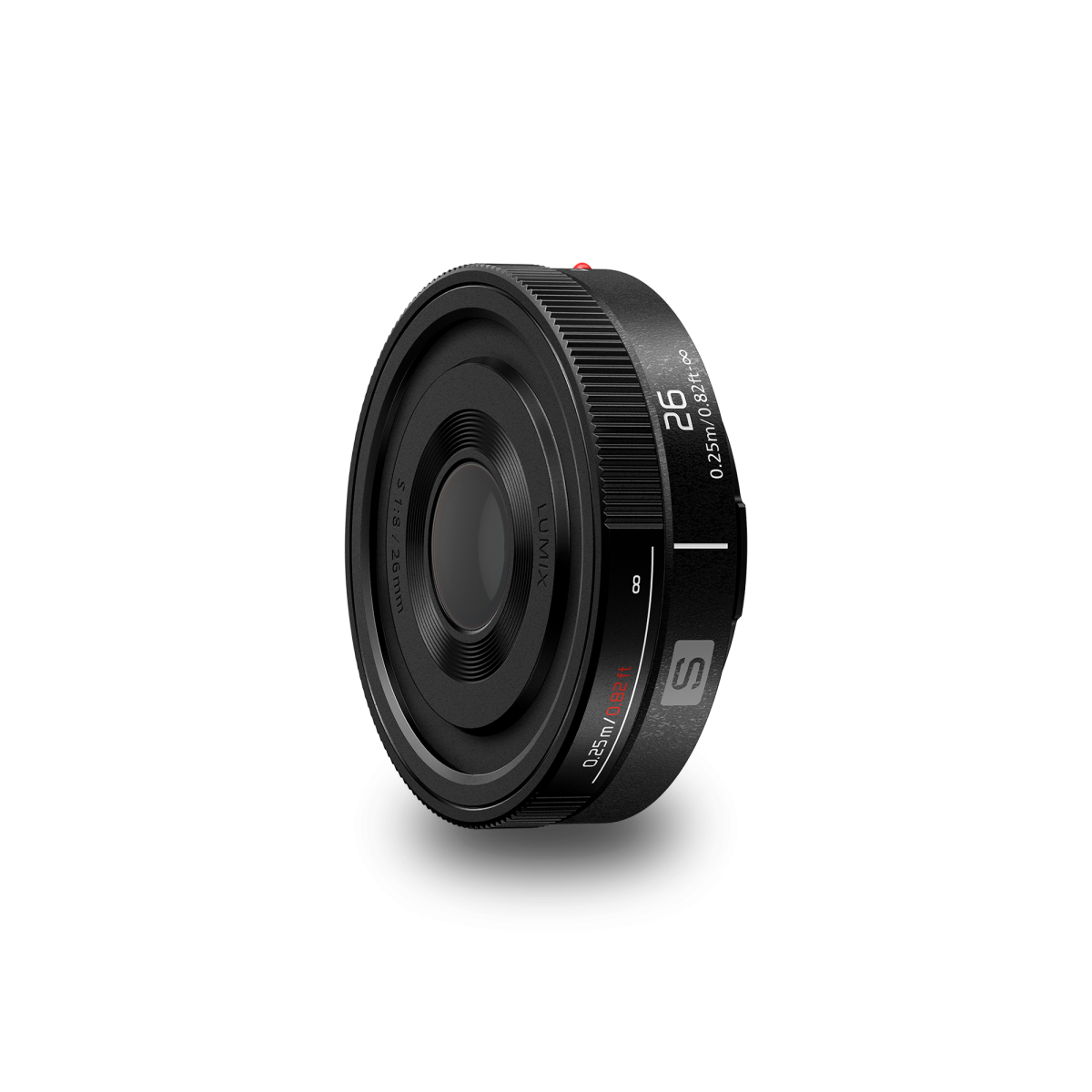

LUMIX S 26mm F8 Pancake Lens
The LUMIX S 26mm F8 Pancake Lens is a perfect alternative to a body cap while being able to capture sharp yet nostalgic images with its deep F8 aperture. The tactile manual focus ring provides control over focus for close and far focusing while also being able to set and forget for snapshots.
Compact & Lightweight
Perfect for capturing those everyday special moments. The ultra-thin and lightweight design allows the lens to replace a body cap, but it's always ready to capture. ･This lens is for manual focus only, fixed at F8. The camera's AF setting and some MF assist functions cannot be used.
Share your journey creatively
The versatile 26mm focal length gives an expansive view of the world while supporting creative photography with its F8 fixed aperture allowing you to capture deep-focus images. The mechanical manual focus ring offers tactile control over focus allowing you to create unique imagery through creative control.

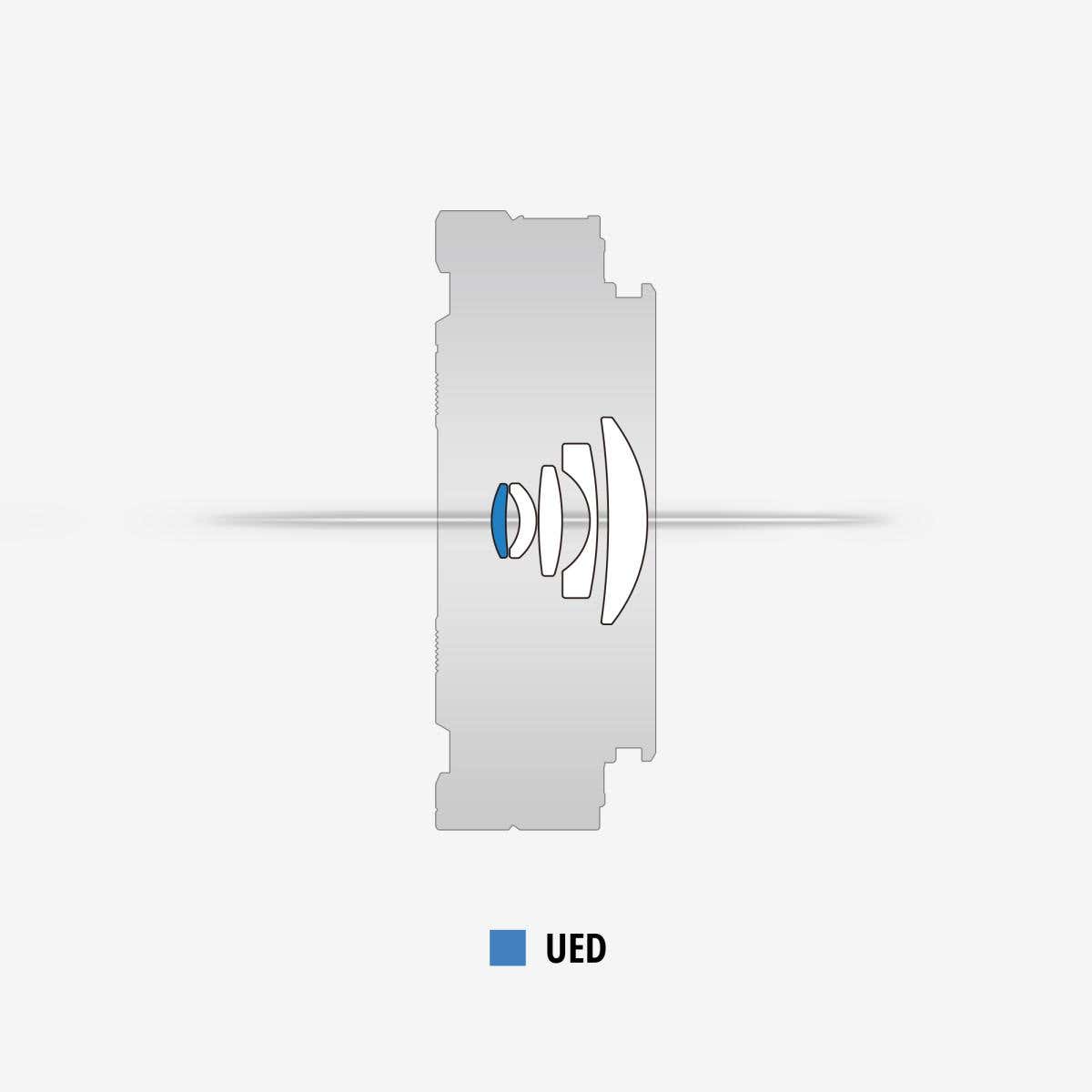

S-R26 lens construction
The optimized configuration has 5 elements in 5 groups, including 1 UED lens to minimize aberrations and ensure superb resolution.

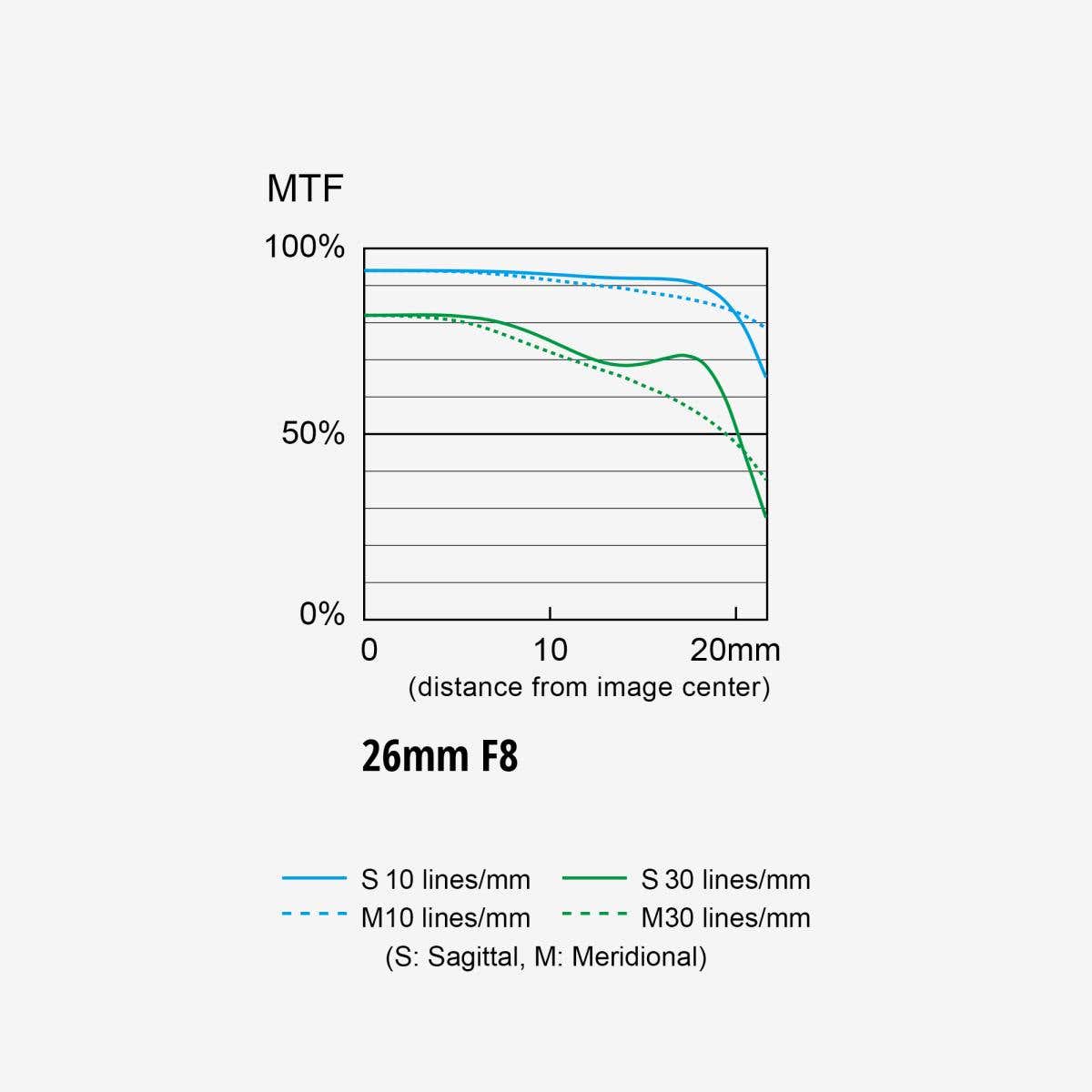

S-R26 MTF chart
Offering sharpness and resolution from the centre to the edges of the frame, this is an ideal lens for the LUMIX full-frame system. ･For lenses that are capable of compensating distortion, the horizontal axis shows the distance from the centre of the corrected image.
-
Overall length of 18.1mm and weight of 58g (approximately)
-
26mm wide-angle lens
-
F8 fixed aperture and manual focus
Size and Weight
- Height
- 67.1mm
- Width
- 67.1mm
- Depth
- 18.1 mm
- Weight
- 58g
Approximately. Weight excluding lens rear cap. Length from the tip of the lens to the base side of the lens mount.
| Lens Construction | 5 elements in 5 groups (1 UED lens) (excluding 1 protection element) | ||
| Mount | L-Mount | ||
| Optical Image Stabiliser | - | ||
| Focal Length | f=26mm | ||
| Aperture Type | (The aperture is fixed at F8) | ||
| Maximum Aperture | F8 | ||
| Minimum Aperture | F8 | ||
| Focus Type | Manual Focus | ||
| Closest Focusing Distance | 0.25m/0.82ft | ||
| Maximum Magnification | 0.14x | ||
| Diagonal Angle of View | 80° | ||
| Dust and Splash Resistant | - | ||
| Recommended Operating Temperature | 0℃ to 40℃ (32℉ to 104℉) | ||
| Filter Size | (Filters and lens caps cannot be attached with this lens) | ||
| Max. Diameter | φ67.1mm / 2.64inch | ||
| Overall Length | Approx. 18.1mm / 0.71inch (from the tip of the lens to the base side of the lens mount) | ||
| Weight | Approx. 58g / 0.13lb (excluding lens rear cap) | ||
| Standard Accessories | Lens rear cap | ||
