LUMIX S Series 24-105mm / F4.0 / Macro O.I.S Lens
24-105mm standard zoom lens compatible with 5-axis Dual I.S. 2.
Excellent close-up performance with a closest focusing distance of 0.3m and a maximum magnification of 0.5x.
Dust, splash and freeze-resistant design.
LUMIX S 24-105mm F4 MACRO O.I.S.
Covering the wide-angle to medium telephoto range with macro shot capability.
Versatile Zoom Lens With Macro
The LUMIX S 24-105mm F4 MACRO O.I.S. lens is one of the most versatile lenses for any photographer or videographer. It offers a maximum magnification of 0.5x and a minimum focusing distance of 0.3m. This lens is ideal for a wide range of photographic opportunities, such as vast landscapes, beautiful flowers and plants, stunning portraits, and a wide variety of macro photography.
Durable, Rugged Design
The LUMIX S 24-105mm F4 lens is dust and splash resistant* and designed for use at temperatures as low as -10 °C. The internal lens system is protected from sand, rain and more, making it tough enough to withstand heavy field use and perfect for shooting under harsh conditions. * Dust and Splash Resistant does not guarantee that damage will not occur if this lens is subjected to direct contact with dust and water.
O.I.S. for Ultra-Sharp Photos
The Optical Image Stabilisation (O.I.S.) technology built directly into the lens ensures your photos will look great, with sharp blur-free contours across the entire picture.
Moreover, high-speed, high-precision autofocus featuring a linear motor and 480 fps AF control compliments the 6-stop** 5-axis Dual I.S. 2*** (lens + in-body stabilisation) to help you capture spontaneous moments with confidence. ** Based on the CIPA standard (Yaw/Pitch direction: focusing distance f=105mm, when LUMIX S1R is used).
*** 5-Axis Dual I.S. 2 can be used with cameras: LUMIX S1R, S1, S1H & S5 as of March, 2021.
Ideal for Video Recording
Featuring fast, accurate autofocus, smooth aperture changes, a silent design for enhanced capture of the scene’s audio, O.I.S and 5-axis Dual I.S. 2* for steady hand-held recording, this lens has everything the modern content creator needs for confidence inspiring filming. * 5-Axis Dual I.S. 2 can be used with cameras: LUMIX S1R, S1, S1H & S5 as of March, 2021.
S-R24105 Lens Construction
The optimized configuration has 16 elements in 13 groups, including 2 ASPH/ED, 2 ASPH, 1 UED and 2 ED lenses to minimize aberrations and ensure superb resolution.

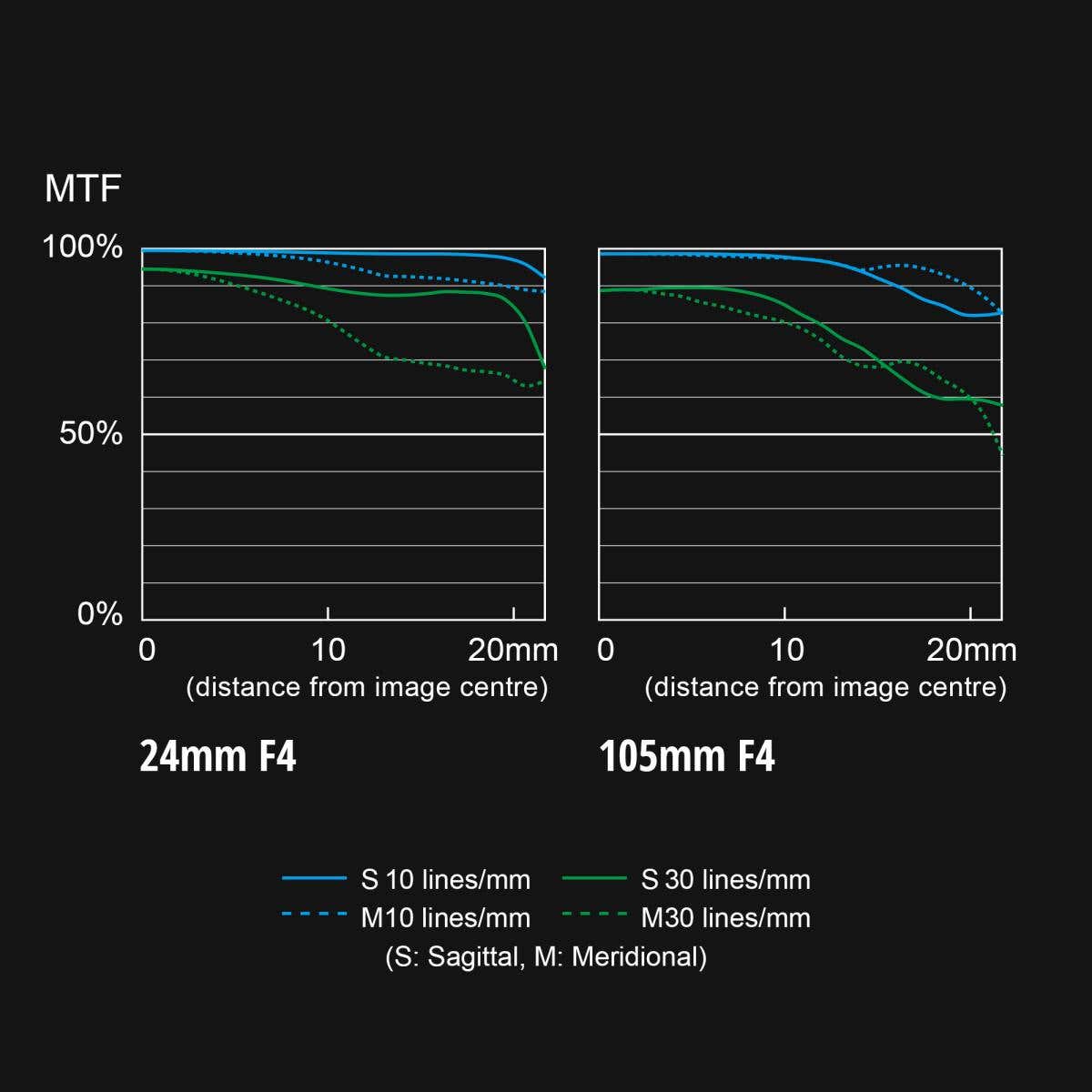

S-R24105 MTF Chart
Offering outstanding sharpness and resolution throughout the entire zoom range, this is an ideal lens for the LUMIX full-frame system, and provides creative opportunities without compromise. * For lenses that are capable of compensating distortion, the horizontal axis shows the distance from the centre of the corrected image.
-
24-105mm standard zoom lens compatible with 5-axis Dual I.S. 2.
-
Excellent close-up performance with a closest focusing distance of 0.3m and a maximum magnification of 0.5x.
-
Dust, splash and freeze-resistant design.
Size and Weight
- Height
- 84mm
- Width
- 84mm
- Depth
- 118.0mm
- Weight
- 680g
Approximately. Weight excluding lens cap, lens rear cap and lens hood. Length from the tip of the lens to the base side of the lens mount.
| NOTE | *Dust and Splash Resistant does not guarantee that damage will not occur if this lens is subjected to direct contact with dust and water. | ||
| Features | Lens Construction | 16 elements in 13 groups (2 aspherical ED lenses, 2 aspherical lenses, 1 UED lens, 2 ED lenses) | |
| Mount | L-Mount | ||
| Optical Image Stabilizer | yes | ||
| Focal Length | f=24-105mm | ||
| Aperture Type | 9 diaphragm blades / Circular aperture diaphragm | ||
| Maximum Aperture | F4.0 | ||
| Minimum Aperture | F22 | ||
| Closest Focusing Distance | 0.30m / 0.98ft | ||
| Maximum magnification | Approx. 0.5x | ||
| General | Diagonal Angle of View | 84°(Wide) - 23°(Tele) | |
| Dust and Splash Resistant | Yes* | ||
| Recommended Operating Temperature | -10oC to 40oC (14oF to 104oF) | ||
| Filter Size | φ77mm | ||
| Max. Diameter | φ84mm / 3.31inch | ||
| Overall Length | Approx. 118mm / 4.65inch (from the tip of the lens to the base side of the lens mount) | ||
| Weight [g] | Approx. 680g (excluding lens cap, lens rear cap and lens hood) | ||
| Weight [oz] | Approx. 23.99oz (excluding lens cap, lens rear cap and lens hood) | ||
| Standard Accessories | Lens cap, Lens rear cap, Lens hood, Lens storage bag | ||
