14.4/18V Cordles Drill and Driver - Battery/Charger Not Included
Possible to use with dual voltage
LED light, electric brake, variable speed control/reversible
General construction, finishing carpentry, electric installation work or plumbing

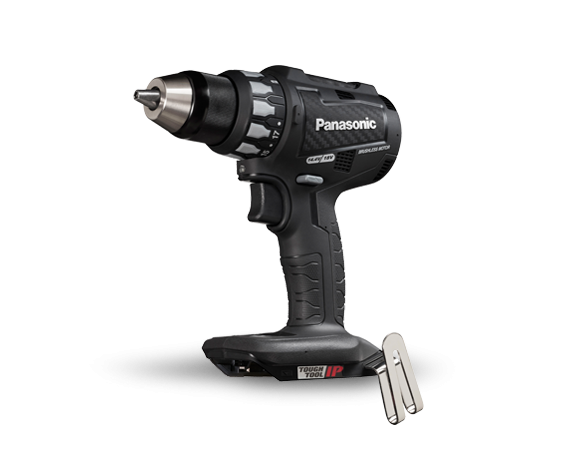

14.4V/18V Cordless Drill & Driver
High speed performance with a compact body with extreme durability. Featuring a new brushless motor, possible to use with dual voltage, ultra hard chuck jaw tips and a hybrid switch. Increased efficiency and flexibility. *Battery pack & battery charger are not included.

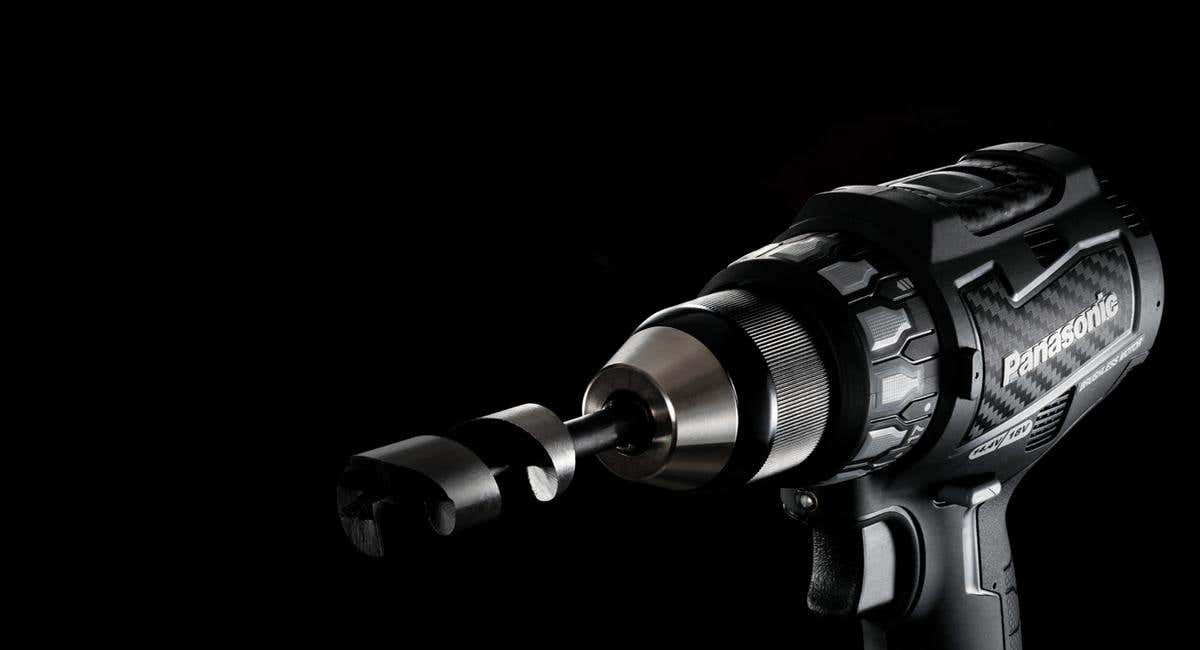

High Performance 13mm Cordless Drill & Driver
The Panasonic EY74A2X57 14.4V/18V Dual Voltage Cordless Drill & Driver is lightweight and compact, yet powerful. With precision variable speed control/reversible, an 18-stage clutch, optimum rotation speed control plus high power brushless motor. The EY74A2X57 is ready for work with with a Panasonic 14.4V or 18V battery. Featuring a handy LED light for user-friendly operation in dark areas, a heavy-duty keyless chuck, and an electric brake for added safety.

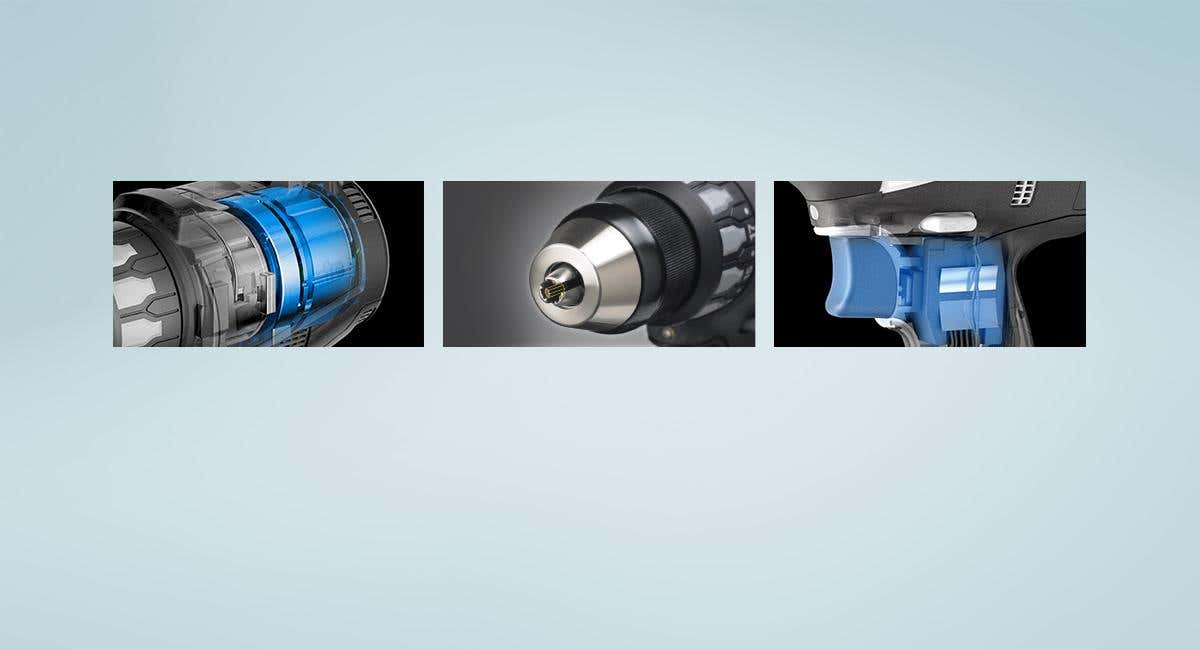

Extreme Durability
Without brushes and commutator which can reduce the lifetime of the tool, the motor lasts approximately twice compared with brushed motor*.
* Compared with Panasonic conventional brushed motor.
Powerful to the Finish
The new, large diameter brushless motors generate high power and efficiency (32Nm of torque - 18V battery). Plus the newly designed control circuit increases stable current flow to motor by more than 70%*. This enables high power output to be evenly maintained until the task is completed even during high-load operation.
* Compared with previous brushless motor.
Increased Efficiency and Flexibility

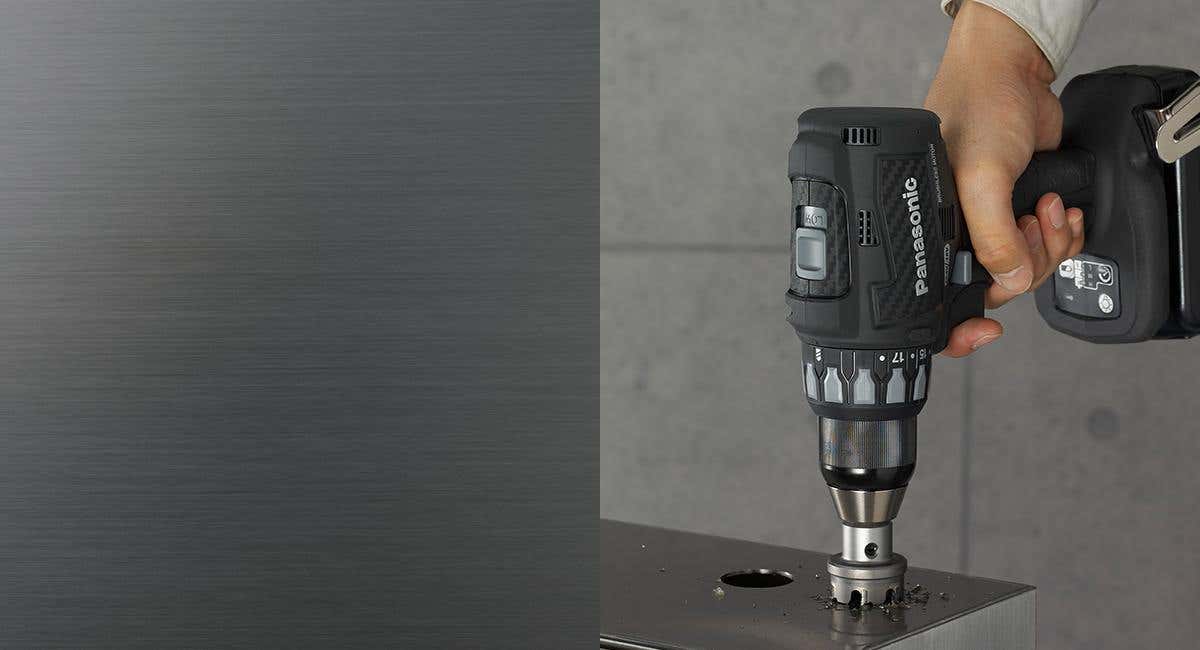

The new ‘Speed Control Function’ allows the user to select from three different low rotation speed settings, based on allowable maximum speeds for metal hole saws. It greatly reduces ‘run out’ when using metal hole saws and prevents surface scorching on stainless steel and other materials.
The advanced ‘Smooth Start’ electronics allow easy, precise speed control, enabling the ultimate control when starting drilling or working with small screws in precise applications.
Tough Tools for Tough Conditions
Many things can happen at a job site such as unexpected incidents, water contact, or exposure to dust; which can cause a tool to malfunction. By incorporating the Tough Tool IP technology, it reassures that Panasonic cordless tools perform at its best in the most difficult situations.
Dust and Water Resistant Level IP56
The International Protection Code classifies the degree of protection provided against intrusion of solid foreign objects and liquids in electrical machinery and fixtures as defined by the IEC standards.
LEVEL 5 - Dust Protected
LEVEL 6 - Protected Against Powerful Water Jets

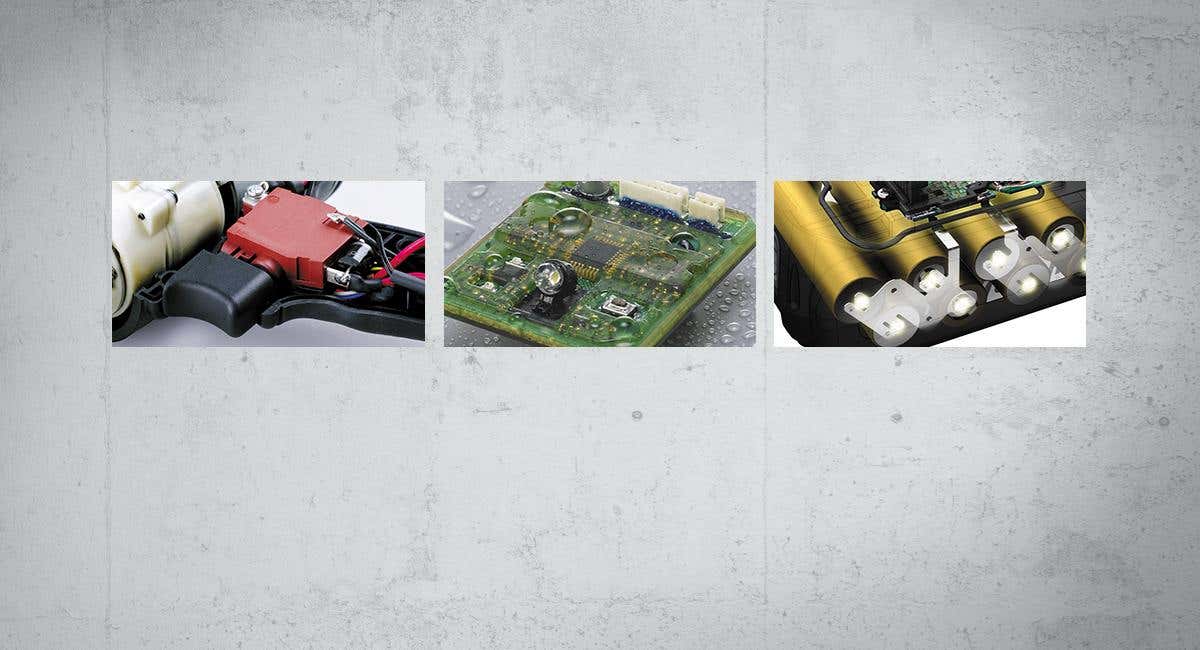

Performance Protection
An additional rubber cap seals the switch and protects it against dust and water.
Dual Voltage for Better Versatility

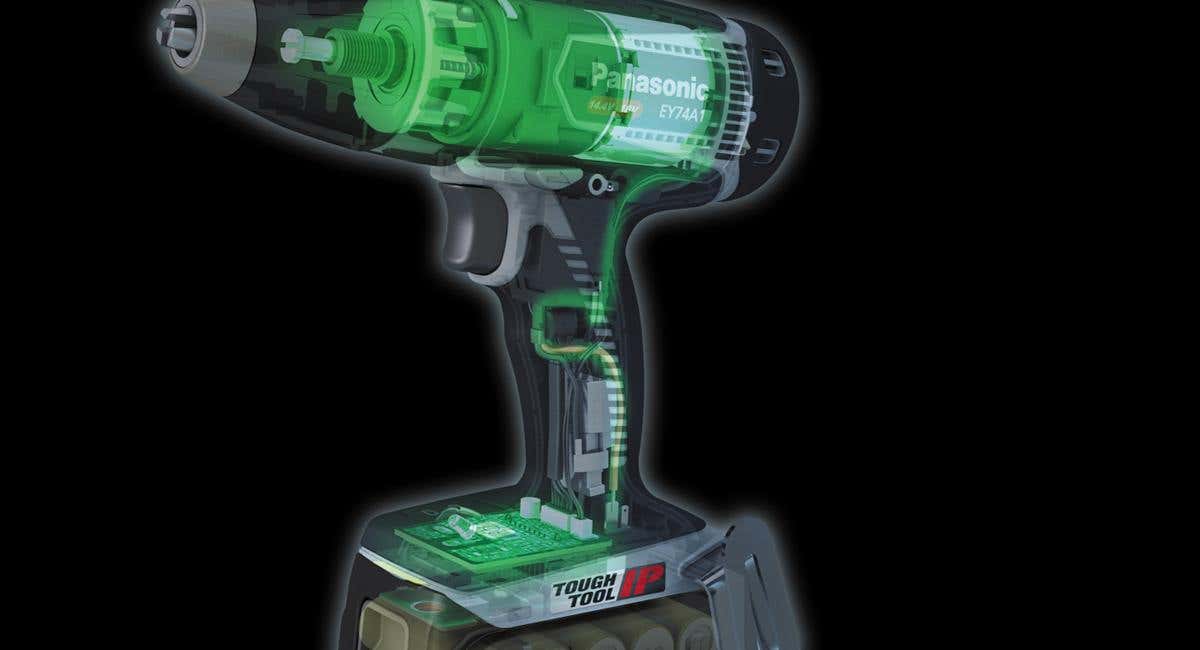

Dual voltage technology offers powerful performance with either a 14.4V or 18V battery. A special dual voltage circuit detects the voltage of the attached battery pack and controls the current and voltage flows to the tool to ensure optimum performance.
18V 3.0Ah
With the 18V 3.0Ah battery, the application speed and working capacity goes up.

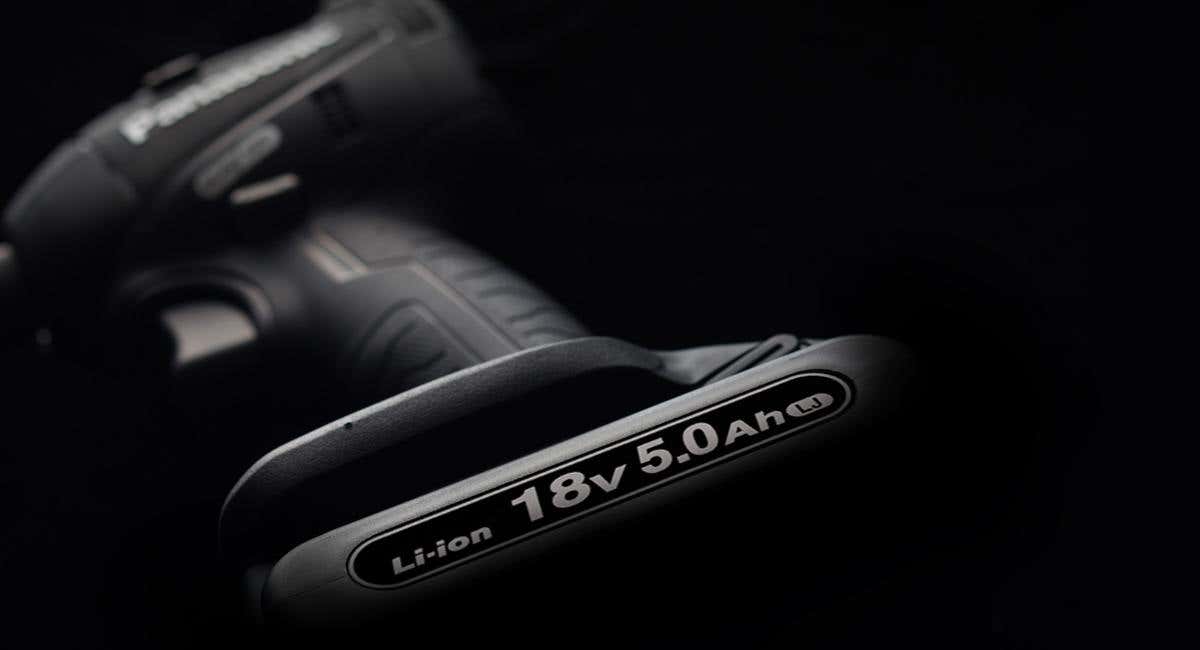

Powerful and Longer Lasting

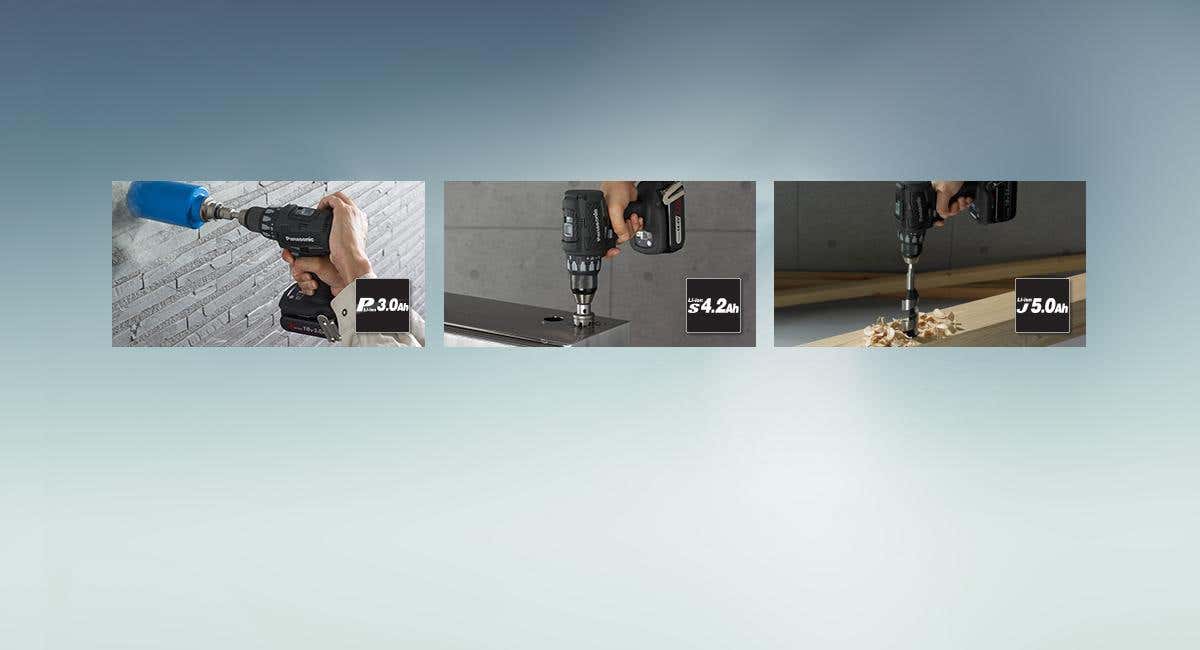

Whether it’s Panasonic’s new generation 18V 5.0Ah battery cell, a slim and lightweight 18V 3.0Ah battery, or a compact standard 14.4V 4.2Ah battery – they all offer more durability during high workload conditions due to its reduction in internal resistance.
Durable New Design
Over-discharge prevention sensor
Prevents over-discharge to avoid lasting cell damage or recharge problems.
Battery overheat protection sensor
Cuts off power to the motor before the battery temperature rises.
Individual monitoring of battery cell voltage
Each cell monitored by sensor to ensure optimal discharge control.
Battery sensor
Flashing lamps indicates overheating battery. Battery is automatically reactivated when temperature drops.
Heat resistance layer technology
In cases where seperator is damaged and abnormal heat is created, HRL acts to contain this heat, just like a Fire wall.
NNP technology
Panasonic’s own developed Nickel oxide material provides higher capacity and higher reliability.
-
Possible to use with dual voltage
-
LED light, electric brake, variable speed control/reversible
-
General construction, finishing carpentry, electric installation work or plumbing
High power brushless motor
| Feature | • Optimum rotation speed control • Variable speed control / reversible • LED light to support work • Electric brake • With 2 battery packs, battery charger (EY0L82) and carrying case | ||
| Max. Torque | Stalling Torque: High/Hard Mode | 14.4V : 10Nm / 18V : 12Nm | |
| Stalling Torque: Low/Soft Mode | 14.4V : 28Nm / 18V : 32Nm | ||
| Instant Torque: Low/Soft Mode | 14.4V : 40Nm / 18V : 50Nm | ||
| Speed at No Load | High/Hard Mode | 14.4V : 70-1350rpm / 18V : 70-1580rpm | |
| Low/Soft Mode | 14.4V : 30-400rpm / 18V : 30-470rpm | ||
| Clutch Torque | 0.5-4.4Nm | ||
| Max.Drill Diameter: Low/Soft Mode | In Wood - 14.4V : dia.35mm / 18V : dia.38mm In Metal - 14.4V : dia.13mm / 18V : dia.13mm | ||
| Max.Screws Driving: Low/Soft Mode | In Wood screw - 14.4V : dia.6.8mm / 18V : dia.8mm In Self-drilling screw - 14.4V : dia.6mm / 18V : dia.6mm | ||
| Size (LxHxW) / Weight (including battery pack) | LJ2G | 178mm x 250mm x 68mm / 2.05kg | |
| PN2G | 178mm x 234mm x 68mm / 1.80kg | ||
| LS2F | 178mm x 242mm x 68mm / 1.90kg | ||
| Battery Pack and Charging time (using EY0L82B) | LJ2G | 18V / 5.0Ah (EY9L54B) Usable:65min. / Full:80min. | |
| PN2G | 18V / 3.0Ah (EY9L53B) Usable:45min. / Full:60min. | ||
| LS2F | 14.4V / 4.2Ah (EY9L45B) Usable:50min. / Full:60min. | ||
| Capacity | Screwing (LJ2G) | Wood Screws in Yellow pine – High Mode: dia.4.1mm x 25mm | 1750pcs |
| Wood Screws in Yellow pine – Low Mode: dia.8mm x 80mm | 430pcs | ||
| Self-Driling Screws in SPC – High Mode: dia.4mm x 13mm, t=1.6mm | 1250pcs | ||
| Drilling (LJ2G) | Holes in Plaster Board + Plywood (Wooding core) – High Mode: dia.50mm, t=24.5mm (Plaster Board t=12.5mm, Plywood t=12.0mm) | 60pcs | |
| Holes in SPC (Hole Saw) – High Mode: dia.21mm, t=1.6mm | 50pcs | ||
| Holes in SPC (Hole Saw) – Low Mode: dia.33mm, t=1.6mm | 75pcs | ||
| Holes in Yellow Pine – High Mode: dia.18mm x 120mm | 140pcs | ||
| Holes in Yellow Pine – Low Mode: dia.30mm x 40mm | 280pcs | ||
| Screwing (PN2G) | Wood Screws in Yellow pine – High Mode: dia.4.1mm x 25mm | 1050pcs | |
| Wood Screws in Yellow pine – Low Mode: dia.8mm x 80mm | 260pcs | ||
| Self-Driling Screws in SPC – High Mode: dia.4mm x 13mm, t=1.6mm | 740pcs | ||
| Drilling (PN2G) | Holes in Plaster Board + Plywood (Wooding core) – High Mode: dia.50mm, t=24.5mm (Plaster Board t=12.5mm, Plywood t=12.0mm) | 35pcs | |
| Holes in SPC (Hole Saw) – High Mode: dia.21mm, t=1.6mm | 30pcs | ||
| Holes in SPC (Hole Saw) – Low Mode: dia.33mm, t=1.6mm | 45pcs | ||
| Holes in Yellow Pine – High Mode: dia.18mm x 120mm | 80pcs | ||
| Holes in Yellow Pine – Low Mode: dia.30mm x 40mm | 170pcs | ||
| Screwing (LS2F) | Wood Screws in Yellow pine – High Mode: dia.4.1mm x 25mm | 1600pcs | |
| Wood Screws in Yellow pine – Low Mode: dia.8mm x 80mm | 300pcs | ||
| Self-Driling Screws in SPC – High Mode: dia.4mm x 13mm, t=1.6mm | 830pcs | ||
| Drilling (LS2F) | Holes in Plaster Board + Plywood (Wooding core) – High Mode: dia.50mm, t=24.5mm (Plaster Board t=12.5mm, Plywood t=12.0mm) | - | |
| Holes in SPC (Hole Saw) – High Mode: dia.21mm, t=1.6mm | 35pcs | ||
| Holes in SPC (Hole Saw) – Low Mode: dia.33mm, t=1.6mm | 50pcs | ||
| Holes in Yellow Pine – High Mode: dia.18mm x 120mm | 110pcs | ||
| Holes in Yellow Pine – Low Mode: dia.30mm x 40mm | 180pcs | ||
