14.4/18V Cordless Angle Grinder - Battery/Charger Not Included
125mm wheel diameter, compact body & lightweight, high speed
Indicator lamp for on-lock start prevention function

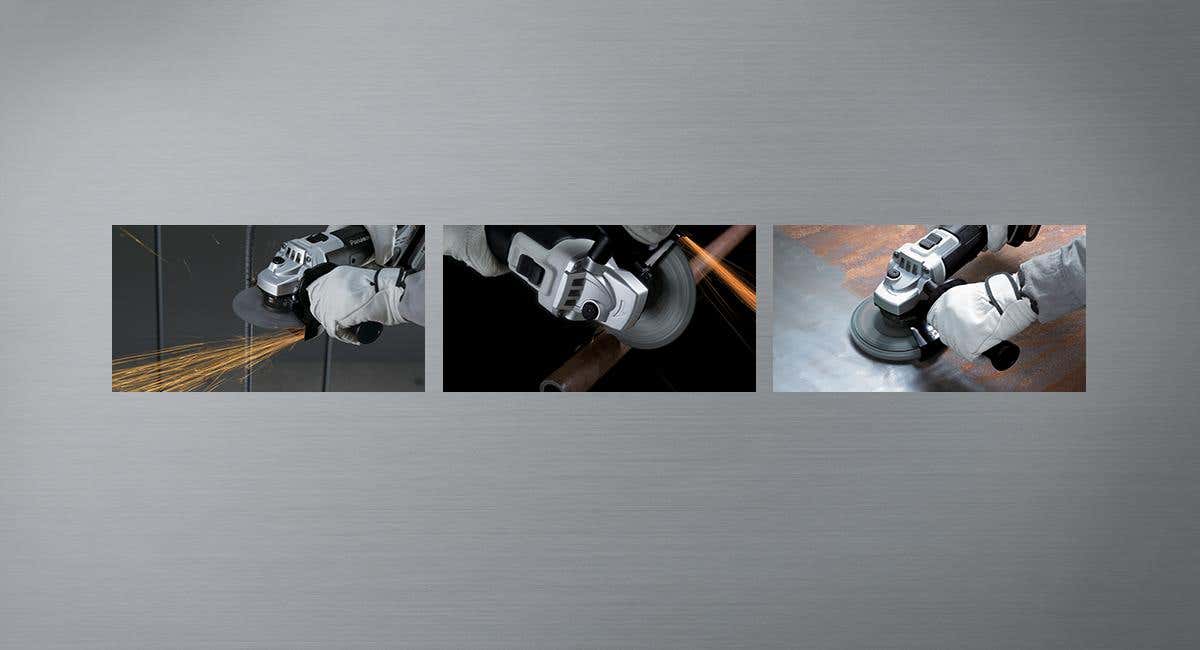

Ideal for Metal fabrication, electrical installation work, plumbing & HVAC

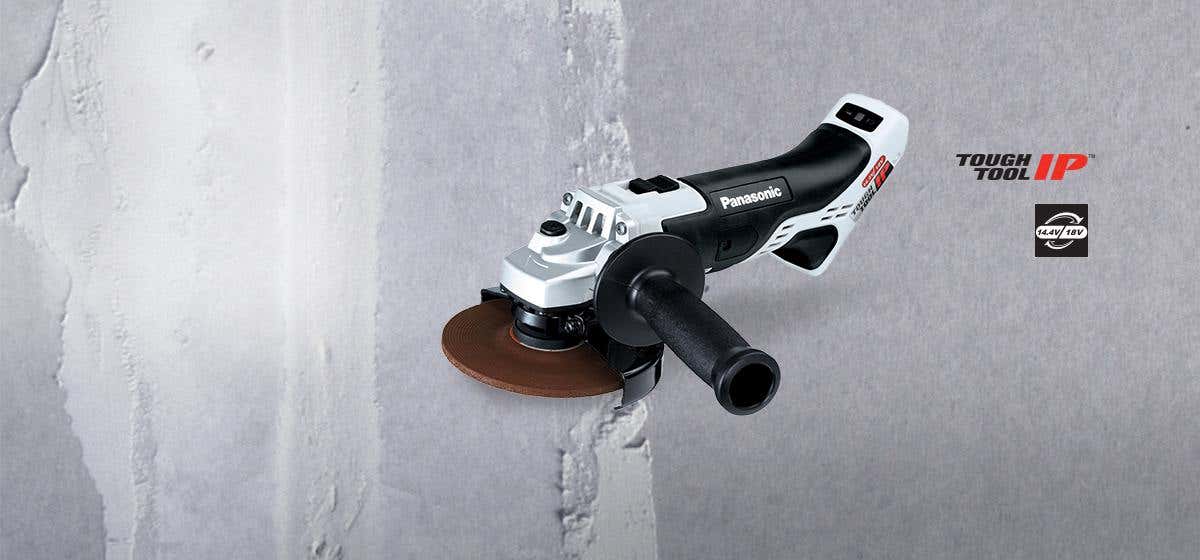

14.4V/18V Cordless Angle Grinder
High power metal cutting and grinding. Featuring dual voltage, 125mm wheel diameter and indicator lamp for on lock start prevention function. *Battery pack, battery charger and grinding disk are not included.

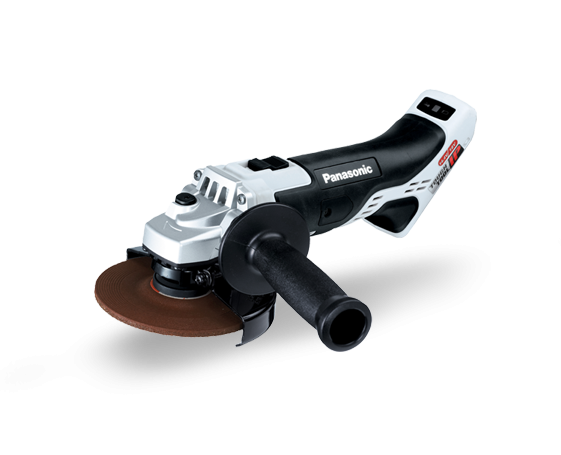

High Power Cordless Angle Grinder
The Panasonic EY46A2X57 Dual Voltage Cordless Angle Grinder features high speed metal cutting and grinding, thanks to its new large motor made capable of continuing to operate even under substantial load while still allowing a compact tool body. The Angle Grinder has a longer running power when paired with a 14.4V or 18V Li-ion battery capacity. The Angle Grinder is ideal for rust removal, reinforcing bar and metal cutting.
Performance Features

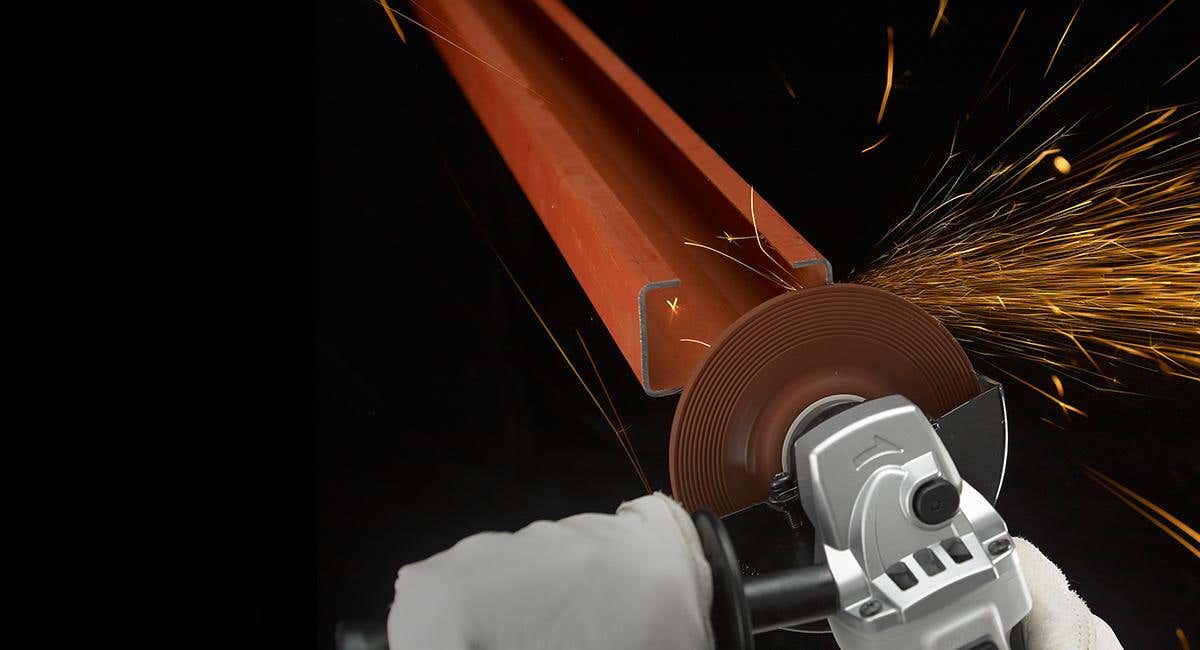

Reinforcing bar cutting

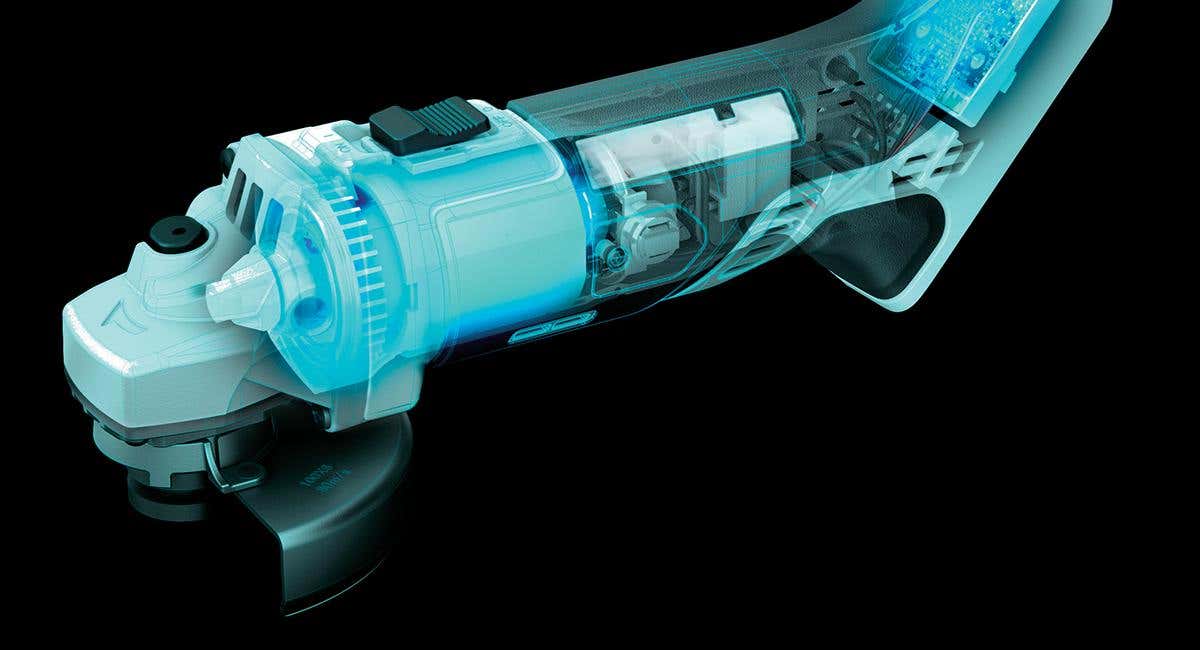

New Large Motor Design
The Panasonic EY46A2X57 features a large motor capable of continuing to operate even under substantial load while still allowing a compact tool body.
Tough Tools for Tough Conditions
Many things can happen at a job site such as unexpected incidents, water contact, or exposure to dust; which can cause a tool to malfunction. By incorporating the Tough Tool IP technology, it reassures that Panasonic cordless tools perform at its best in the most difficult situations.
Dust and Water Resistant Level IP56
The International Protection Code classifies the degree of protection provided against intrusion of solid foreign objects and liquids in electrical machinery and fixtures as defined by the IEC standards.
LEVEL 5 - Dust Protected
LEVEL 6 - Protected Against Powerful Water Jets

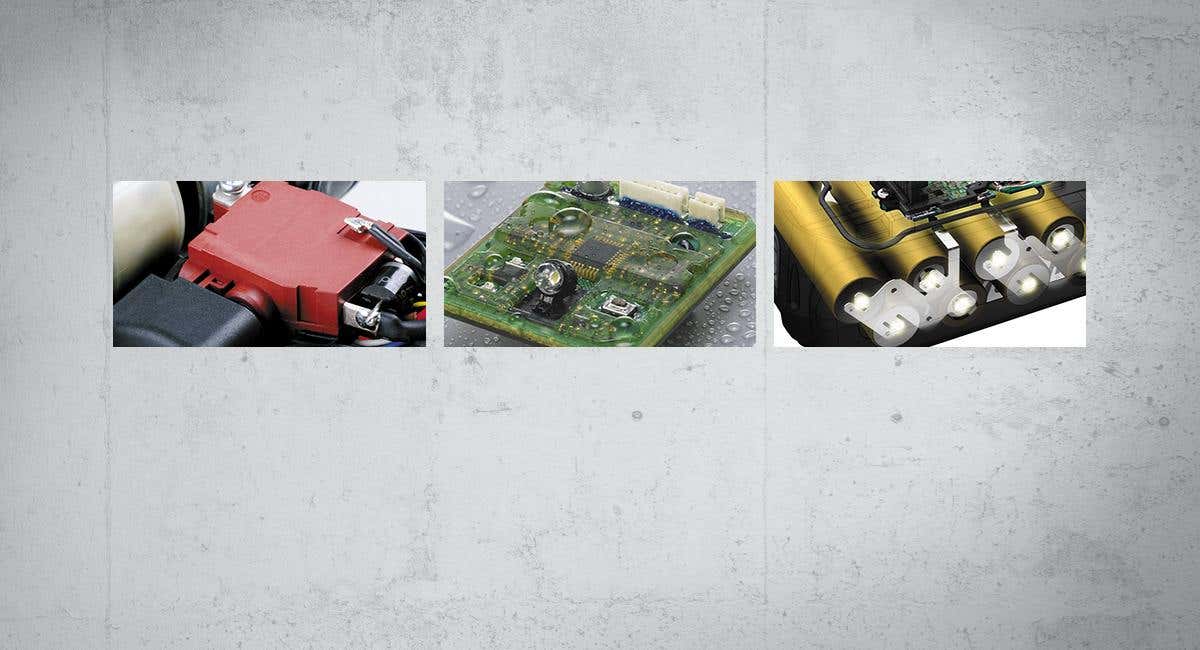

Performance Protection
An additional rubber cap seals the switch and protects it against dust and water.

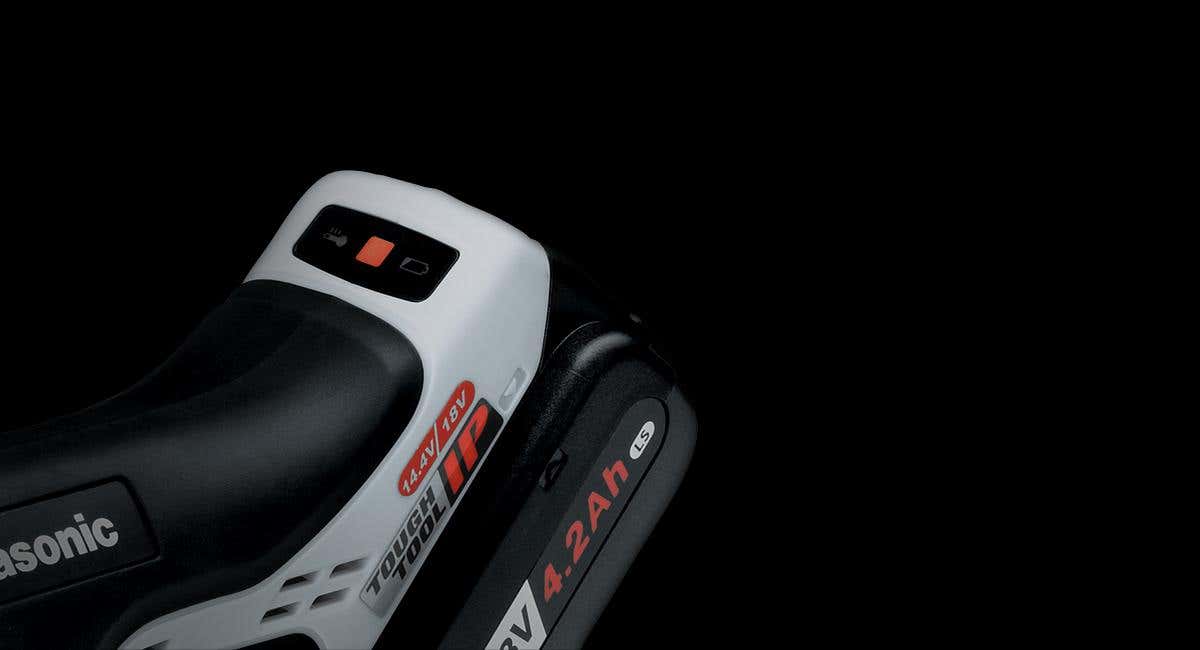

Dual Voltage for Better Versatility
Dual voltage technology offers powerful performance with either a 14.4V or 18V battery. A special dual voltage circuit detects the voltage of the attached battery pack and controls the current and voltage flows to the tool to ensure optimum performance.
14.4V / 18V High Power
With a 14.4 or 18.0 voltage, it’s easy to use the Cordless Angle Grinder with a powerful and compact 18V battery cell offers a high speed at no load of 10,000 min (rpm).
Powerful and Longer Lasting
Panasonic’s Cordless Angle Grinder is both lightweight and compact, yet versatile paired with any Panasonic Li-ion battery range of 2.0Ah to 5.0Ah battery capacity. The grinder will not start when the battery pack is inserted with the switch at the ON position. The warning lamp will flash at this time to indicate that the ON lock start prevention function is operated.

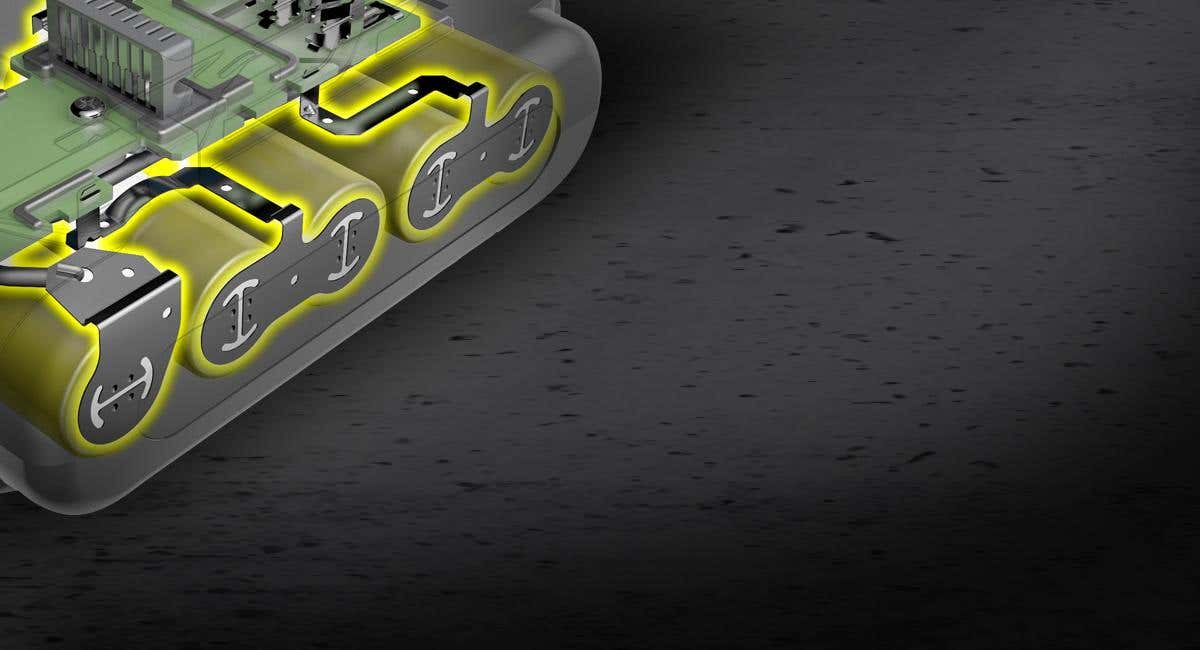

Durable New Design

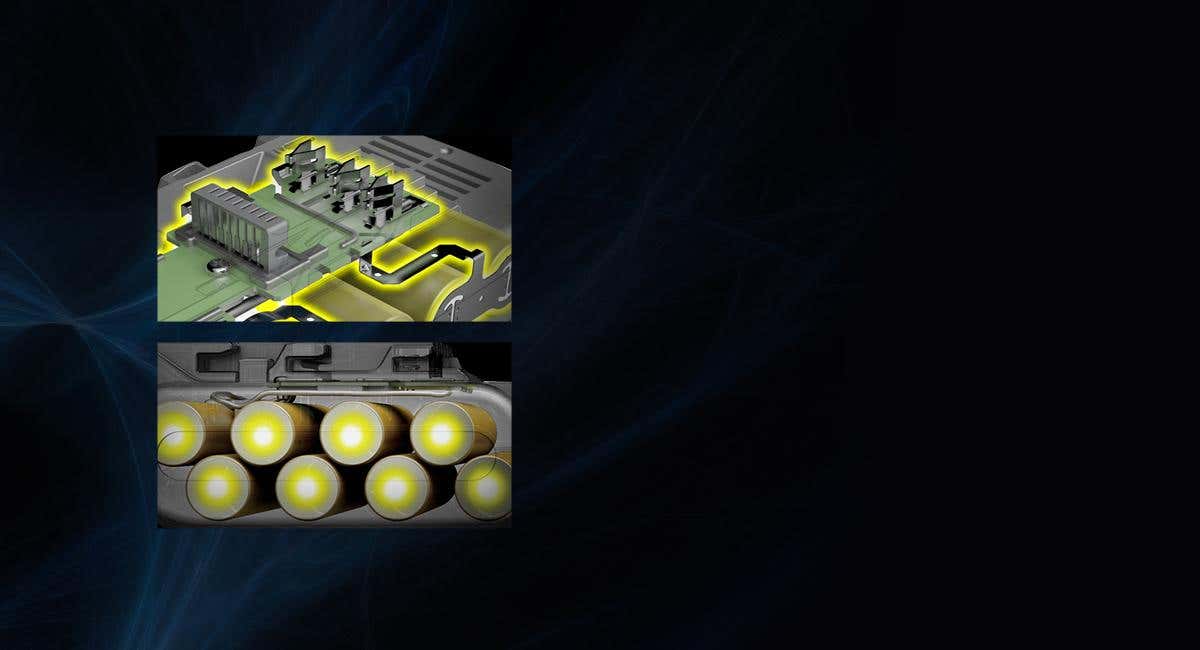

Over-discharge prevention sensor
Prevents over-discharge to avoid lasting cell damage or recharge problems.
Battery overheat protection sensor
Cuts off power to the motor before the battery temperature rises.
Individual monitoring of battery cell voltage
Each cell monitored by sensor to ensure optimal discharge control.
Battery sensor
Flashing lamps indicates overheating battery. Battery is automatically reactivated when temperature drops.
Heat resistance layer technology
In cases where seperator is damaged and abnormal heat is created, HRL acts to contain this heat, just like a Fire wall.
NNP technology
Panasonic’s own developed Nickel oxide material provides higher capacity and higher reliability.
-
125mm wheel diameter, compact body & lightweight, high speed
-
Indicator lamp for on-lock start prevention function
-
Ideal for Metal fabrication, electrical installation work, plumbing & HVAC
| Feature | • High power metal cutting and grinding with 18V • Indicator lamp for on lock start prevention function | ||
| Wheel diameter | 125mm | ||
| Speed at No Load | 10,000 min-1 (rpm) | ||
| Size (LxHxW) / Weight (including battery pack) | LJ | 345 mm x 105 mm x 141 mm / 2.35 kg | |
| PN | 333 mm x 105 mm x 141 mm / 2.15 kg | ||
| Battery Pack and Charging time (using EY0L82B) | LJ | 18V / 5.0Ah (EY9L54B) Usable:65min. / Full:80min. | |
| PN | 18V / 3.0Ah (EY9L53B) Usable:45min. / Full:60min. | ||
| Capacity | LJ | Reinforcing Bar: ø10 mm | 140 pcs/charge |
| PN | Reinforcing Bar: ø10 mm | 85 pcs/charge | |
| NOTE | *Charging time, weight, size and capacity : case of using the battery pack (EY9L54B, EY9L53B) *Battery pack and battery charger are not included. | ||
