14.4/18V Cordless LED Flood Light - Battery/Charger Not Included
1,500 Lumens
360° Handle Rotation
3-Mode Brightness Adjustment

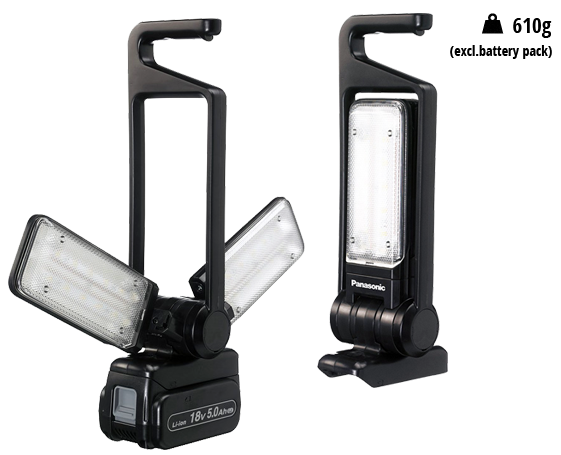

Cordless LED Flood Light With Two Adjustable Panels
The new versatile, compact and lightweight LED flood light provides bright illumination (1500 lumens) where ever you need it. The flat lighting panels are angle and direction adjustable, ideal for wide peripheral, two-direction or overhead lighting. The brightness can be adjusted to suit different work environments.

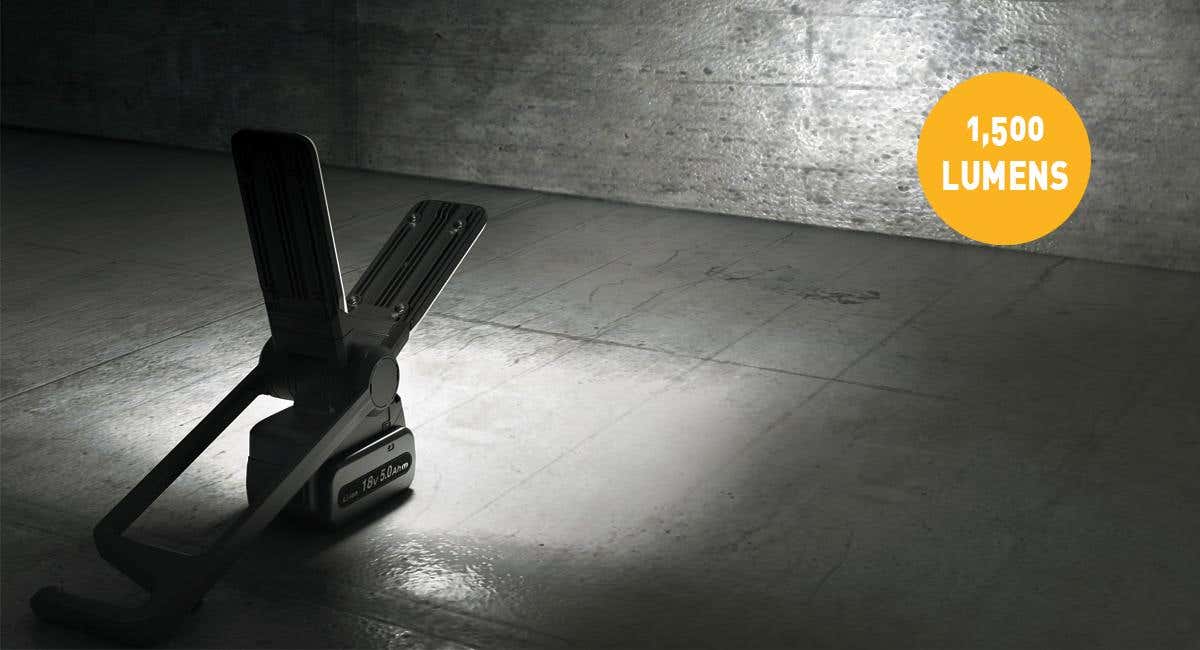

Compact and Lightweight Yet Powerful
WITH 1,500 LUMENS OF LIGHT
A light intensity of 1,500 lumens is achieved by covering each panel with high output LED chips.

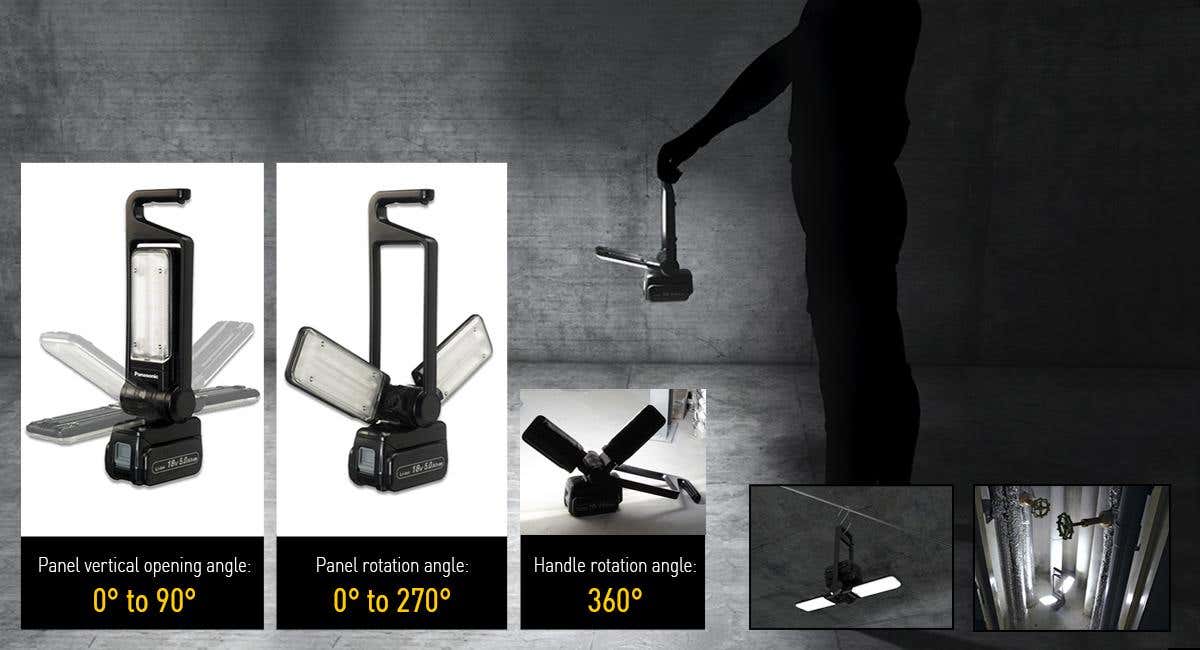

Versatile and Flexible

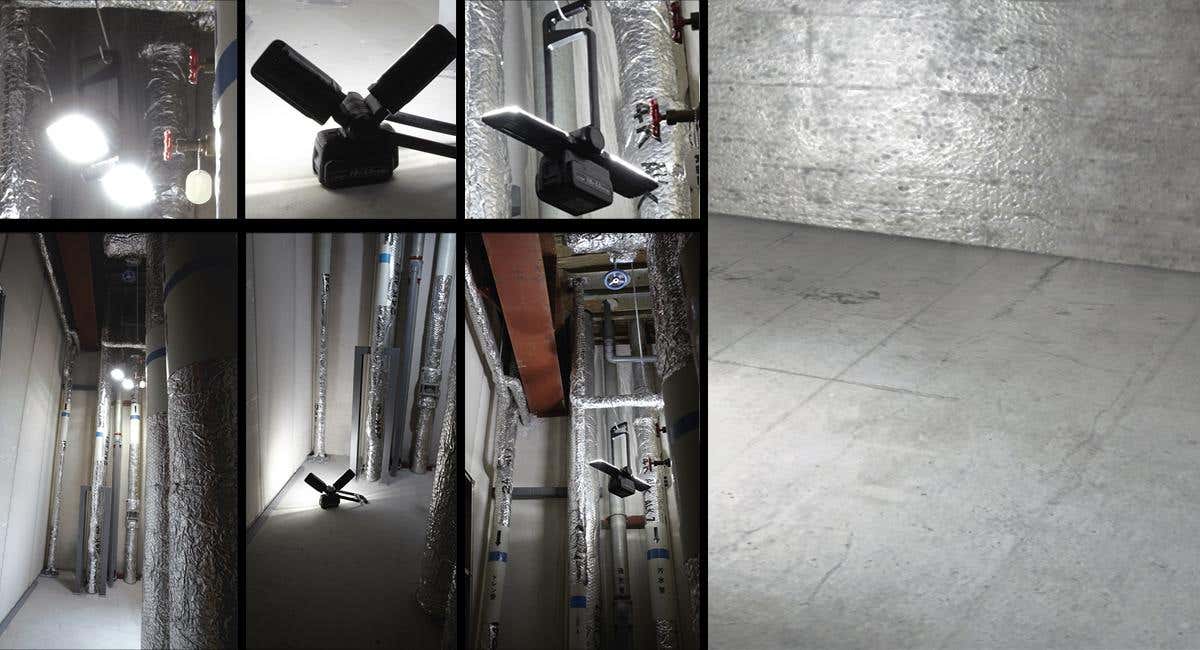

Versatile functionality is central to the design of this floodlight. Not only are the flat lighting panels angle and direction adjustable*, this model also sports a newly designed handle with a built in hook for extra security. Place on the floor or other surface or hang securely from above**.
- Handle rotation: 0° to 360°
- Panel vertical opening angle: 0° to 90°
- Panel rotation angle: 0° to 270° (continuous without stepping)
* There are rotation stoppers on the unit. Do not rotate the lighting panel forcibly beyond the stopper.
** When hanging the light overhead, use a commercially available S-shaped hook or wire to secure it firmly.
Three Levels of Brightness
Compact, lightweight, yet powerful with 1,500 lumens of light, light intensity is achieved by covering each panel with high output LED chips.
Brightness level can be controlled to suit different site areas. No site is the same and so three levels of brightness allow for choice for more comfortable and safe use.
The three levels are:
- High (100% capacity),
- Medium (Approx. 50%),
- Low (Approx. 10%).

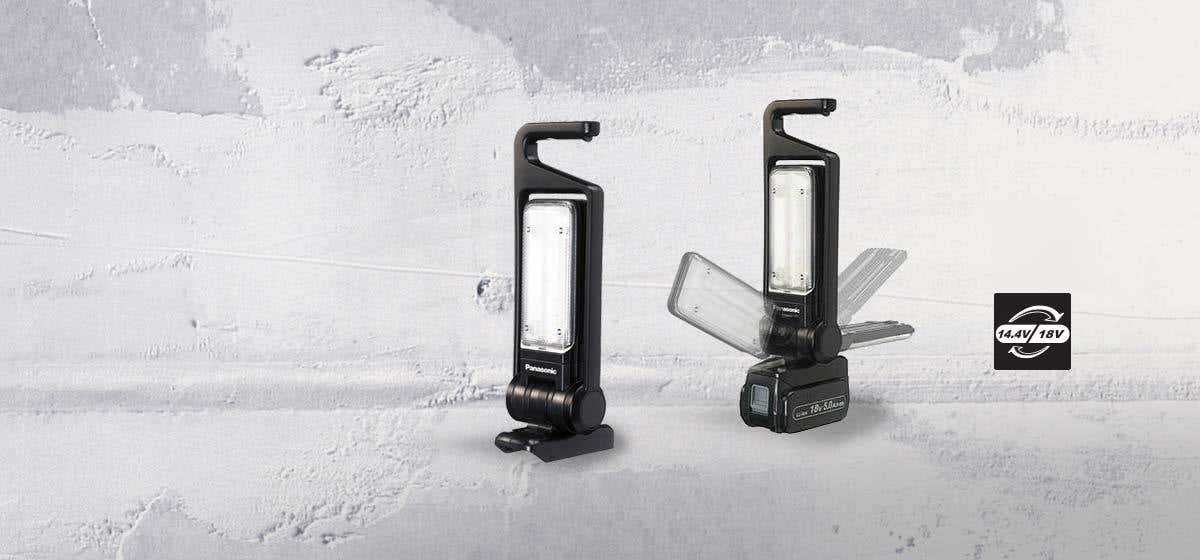

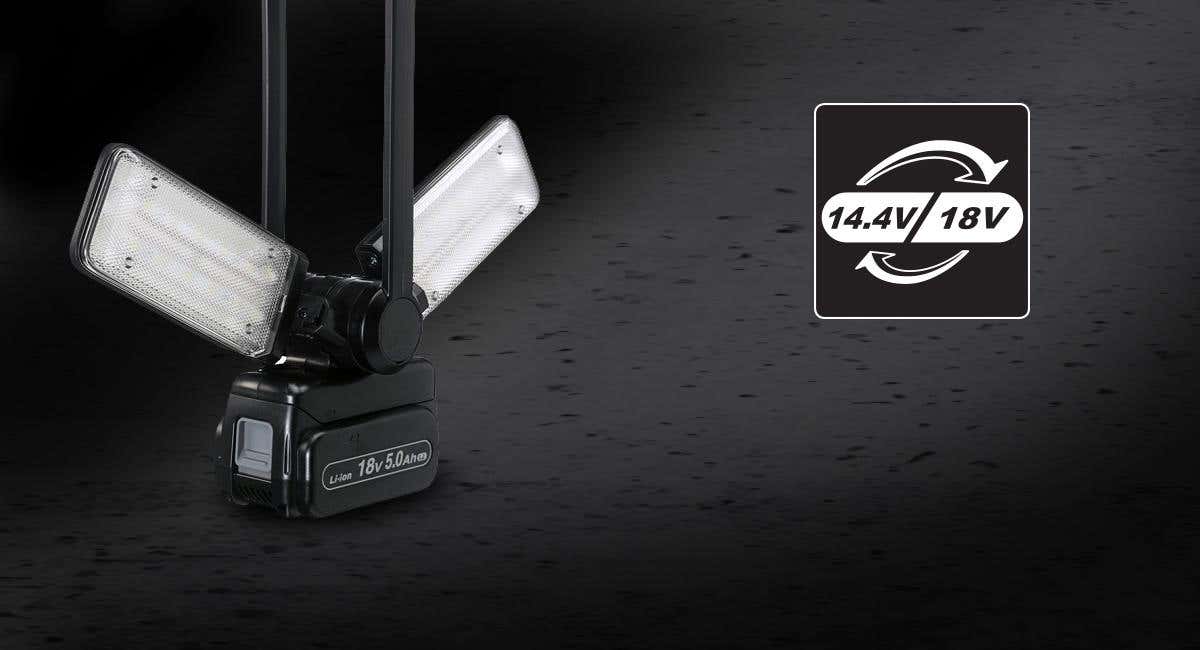

Dual Voltage for Better Versatility
Dual voltage technology offers powerful performance with either a 14.4V or 18V battery. A special dual voltage circuit detects the voltage of the attached battery pack and controls the current and voltage flows to the tool to ensure optimum performance.
-
1,500 Lumens
-
360° Handle Rotation
Plus panel vertical opening angle 0° to 90° / panel rotation angle 0° to 270° -
3-Mode Brightness Adjustment
High for 100% capacity / Medium for approx. 50% / Low for approx. 10%
| Voltage | 18 / 14.4V | ||
| Weight (excl. battery pack) | 610 g | ||
| Dimension (L x H x W) (when handle and 2 lighting panels are folded together vertically) | 125 mm x 312 mm x 96 mm | ||
| Light flux | Approx. 1,500 lumens | ||
| Brightness | Approx. 3,000 lux (at 40 cm ahead) | ||
| Lighting mode (3-mode brightness adjustment) | High for 100% capacity Medium for approx. 50% Low for approx. 10% | ||
| Lighting angle* | Panel vertical opening angle 0° to 90° (15°-intervals, 7 ratcheting points) Rotation angle 0° to 270° (continuous without stepping) | ||
| Handle rotation angle | 0° to 360° (22.5°-interval, 17 ratcheting points) | ||
| Continuous lighting duration | 14.4 V Battery Pack 4.2Ah (EY9L45) | High brightness | Approx. 2 h 30 min. |
| Medium brightness | Approx. 5 h | ||
| Low brightness | Approx. 20 h | ||
| 14.4 V Battery Pack 2.0Ah (EY9L47) | High brightness | Approx. 1 h 10 min. | |
| Medium brightness | Approx. 2 h 20 min. | ||
| Low brightness | Approx. 9 h | ||
| 18 V Battery Pack 5.0Ah (EY9L54) | High brightness | Approx. 3 h 40 min. | |
| Medium brightness | Approx. 7 h 20 min. | ||
| Low brightness | Approx. 30 h | ||
| 18 V Battery Pack 4.2Ah (EY9L51) | High brightness | Approx. 3 h 20 min. | |
| Medium brightness | Approx. 6 h 40 min. | ||
| Low brightness | Approx. 27 h | ||
| 18 V Battery Pack 3.0Ah (EY9L53) | High brightness | Approx. 2 h 10 min. | |
| Medium brightness | Approx. 4 h 20 min. | ||
| Low brightness | Approx. 17 h | ||
| 18 V Battery Pack 2.0Ah (EY9L52) | High brightness | Approx. 1 h 25 min. | |
| Medium brightness | Approx. 2 h 50 min. | ||
| brightness | Approx. 11 h | ||
| *NOTE: | There are rotation stoppers on the unit. Do not rotate the lighting panel forcibly beyond the stopper. | ||
