XLR2 MICROPHONE ADAPTOR
SKU
DMW-XLR2E
32-bit float recording with the LUMIX GH7
4ch audio and High-Res audio recording
Microphone holder
Φ3.5 stereo mini jack
Physical switches and dials for easy control
Incl. Tax
$899.00

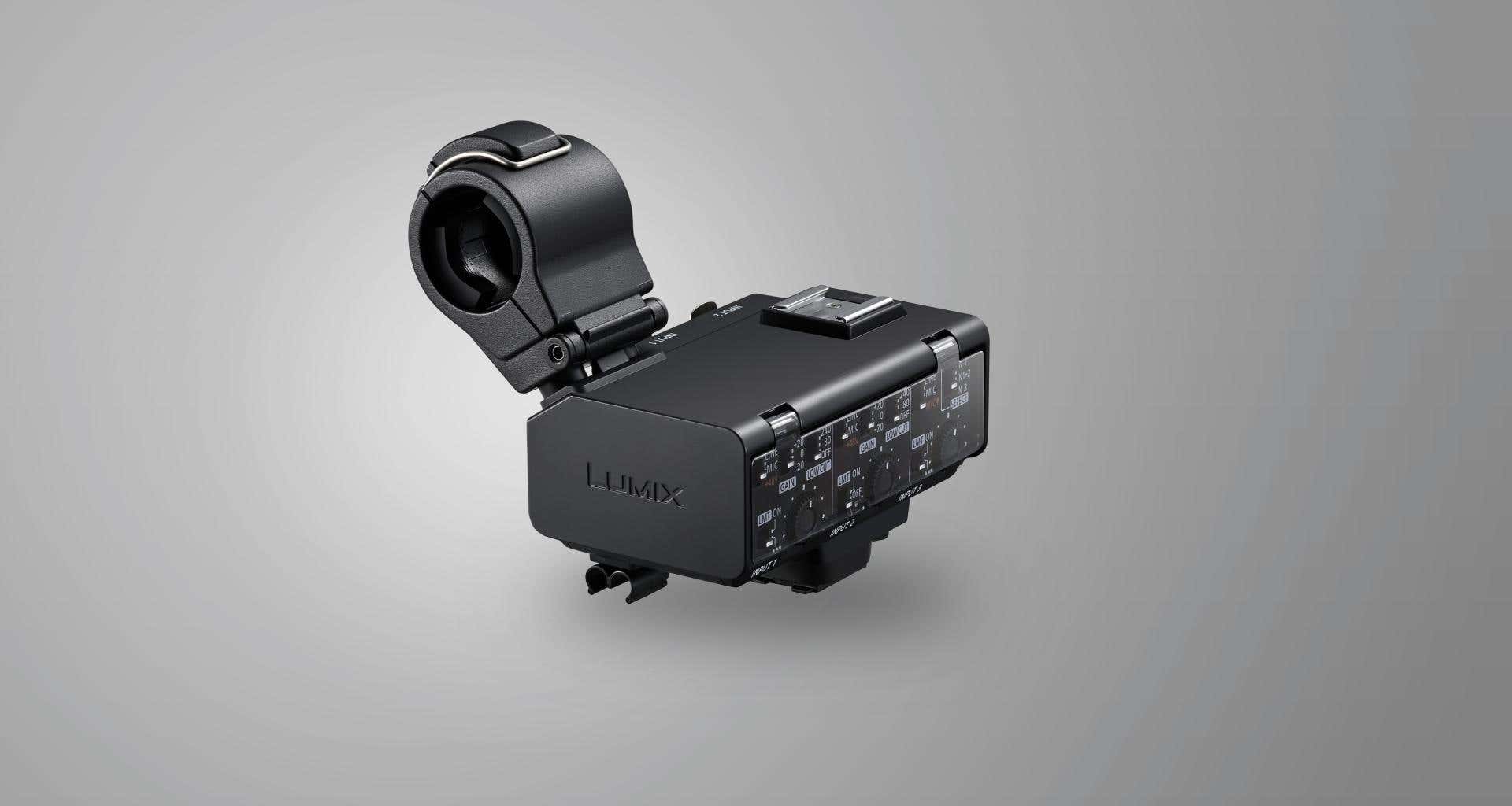

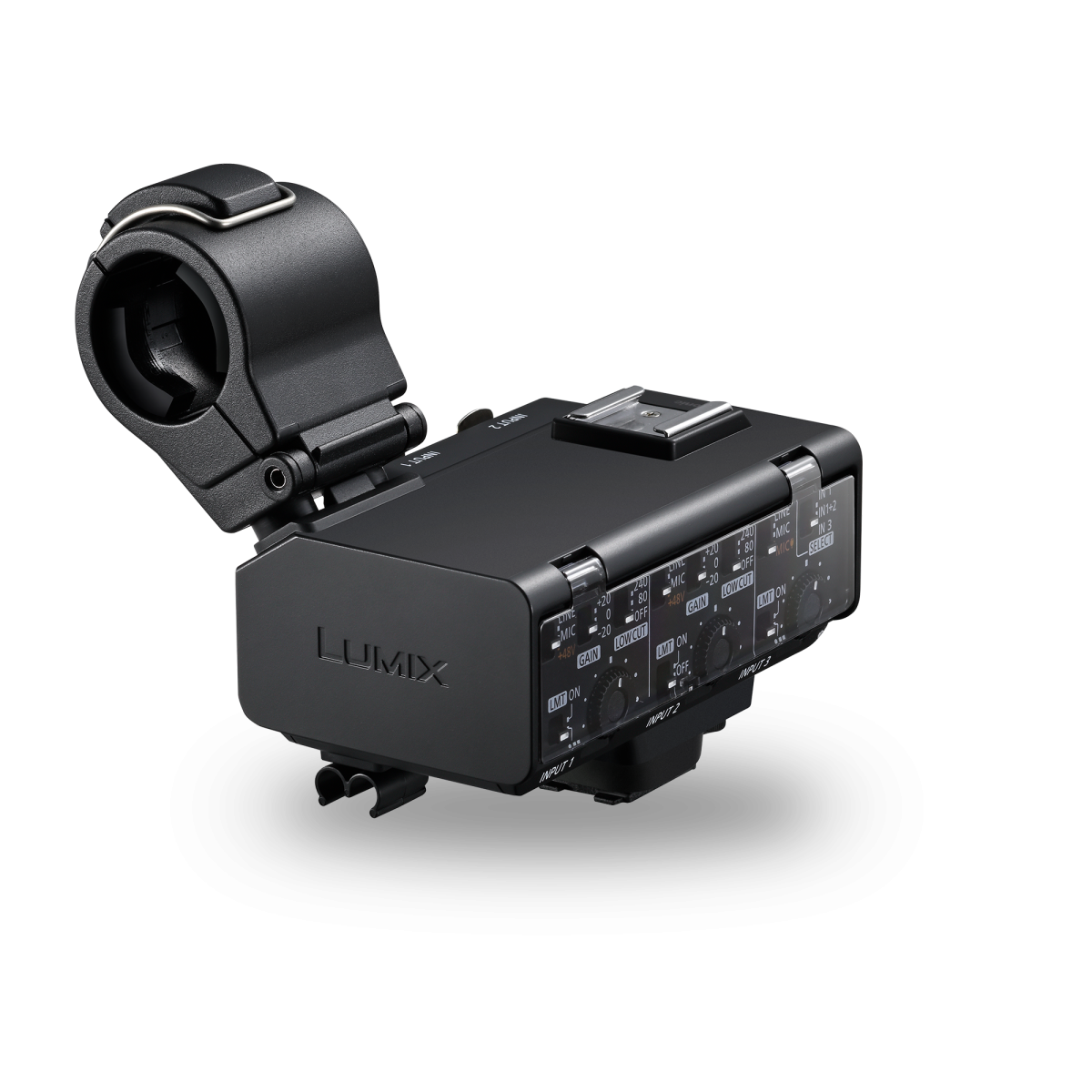

32-bit Float Audio XLR Microphone Adaptor
XLR microphone adaptor for 4 channel audio recording, high-resolution sound recording and 32-bit float recording. Compatible with the LUMIX GH7 (DC-GH7).
32-bit Float Recording*
The DMW-XLR2 is compatible with the LUMIX GH7 and enables powerful 32-bit float recording, capturing a wider dynamic range and eliminating the need for tedious sound level adjustments during audio recording. *Compatible model as of June 2024: LUMIX GH7 (DC-GH7) .
-
32-bit float recording with the LUMIX GH7
-
4ch audio and High-Res audio recording
-
Microphone holder
-
Φ3.5 stereo mini jack
-
Physical switches and dials for easy control
Size and Weight
- Height
- 106.2mm
- Width
- 94.6mm
- Depth
- 92.0mm
- Weight
- 192g
With microphone holder. The size without the microphone holder is 60.9 x 61.2 x 92 mm, and it weighs 158g. All values are approximate.
| INPUT1 / INPUT2 | Input Terminal | XLR 3-pin (female) | |
| Standard Input Level | LINE: 0 dBu MIC, +48V: -40 dBu (0 dBu=0.775 Vrms) | ||
| Standard Recording Level | -12 dBFS (at the standard input) | ||
| Frequency Characteristic | 20Hz to 40kHz, +1/-1 dB (during Fs=96kHz, during LINE) | ||
| Phantom Power Source | 48V | ||
| INPUT3 | Input Terminal | φ3.5mm stereo mini jack | |
| Standard Input Level | LINE: -10 dBV MIC, MIC (plug-in power): -40 dBV (0 dBV=1 Vrms) | ||
| Standard Recording Level | -12 dBFS (at the standard input) | ||
| Frequency Characteristic | 20Hz to 40kHz, +1/-1 dB (during Fs=96kHz, during LINE) | ||
| Plug-in Power | 2.5V | ||
| Sampling Frequency Bit Length / Number of Recording Channels | Linear Recording | 48kHz/24-bit/2ch, 96kHz/24-bit/2ch (Select one of INPUT1, INPUT1+2, or INPUT3) 48kHz/24-bit/4ch | |
| Float Recording | 48kHz/32-bit/2ch, 96kHz/32-bit/2ch (Select one of INPUT1, INPUT1+2, or INPUT3) 48kHz/32-bit/4ch | ||
| Dimensions (W x H x D) | Approx. 61.2 x 60.9 x 92 mm / 2.41 x 2.40 x 3.63 inch (without microphone holder) Approx. 94.6 x 106.2 x 92 mm / 3.73 x 4.19 x 3.63 inch (with microphone holder) (excluding the projecting parts) | ||
| Weight | Approx. 158 g / 0.35 lb (without microphone holder) Approx. 192 g / 0.43 lb (with microphone holder) | ||
| Operating Temperature | -10℃ to 40℃ (14℉ to 104℉) | ||
| Operating Humidity | 10 - 80 %RH | ||
| Standard Accessories | Cable Holder, Microphone Holder, Pouch | ||
