BATTERY GRIP S1RII
Extended battery life
Buttons, dial and joystick can be used in the same way as the LUMIX S1RII (DC-S1RM2)
Dust, splash and freeze-resistant design

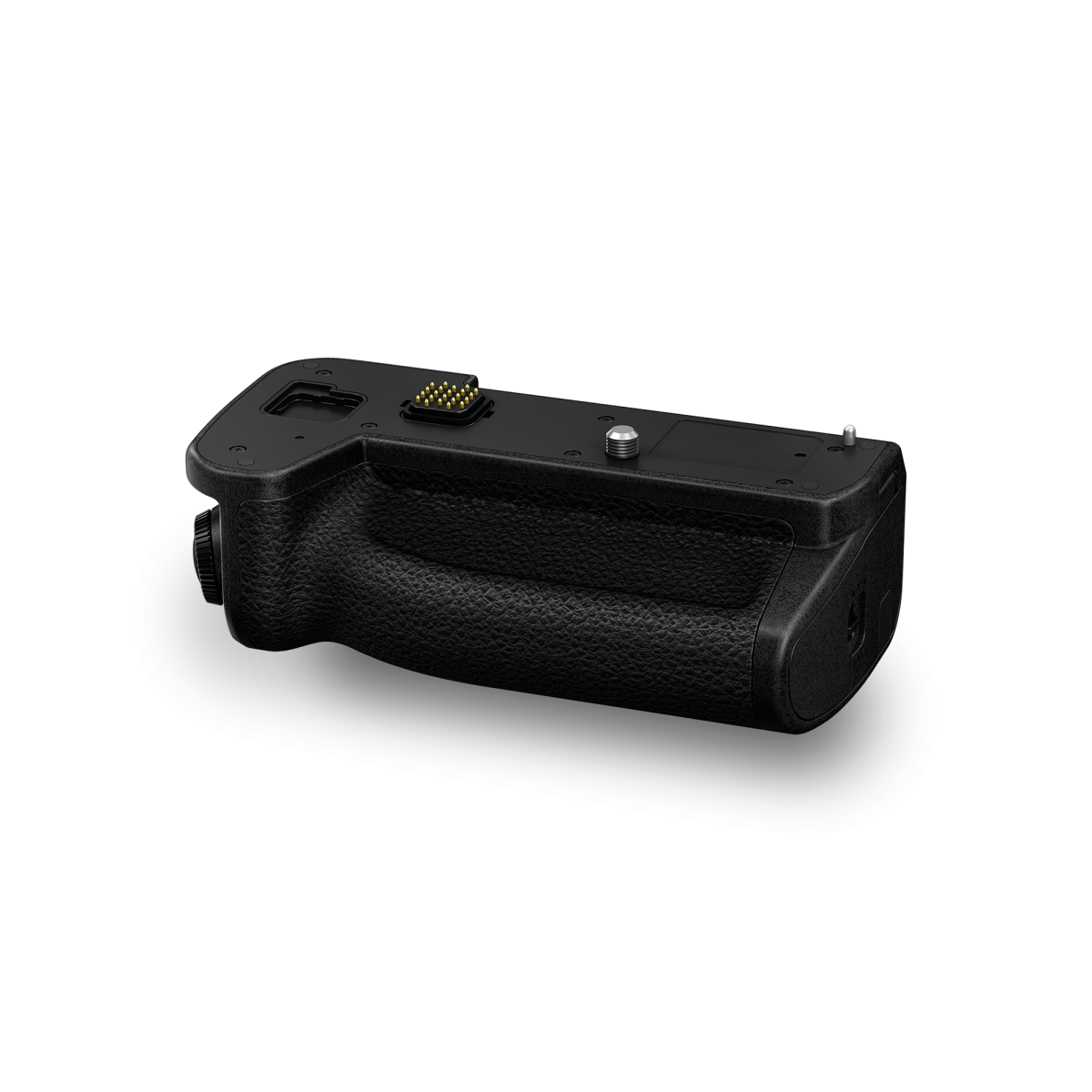

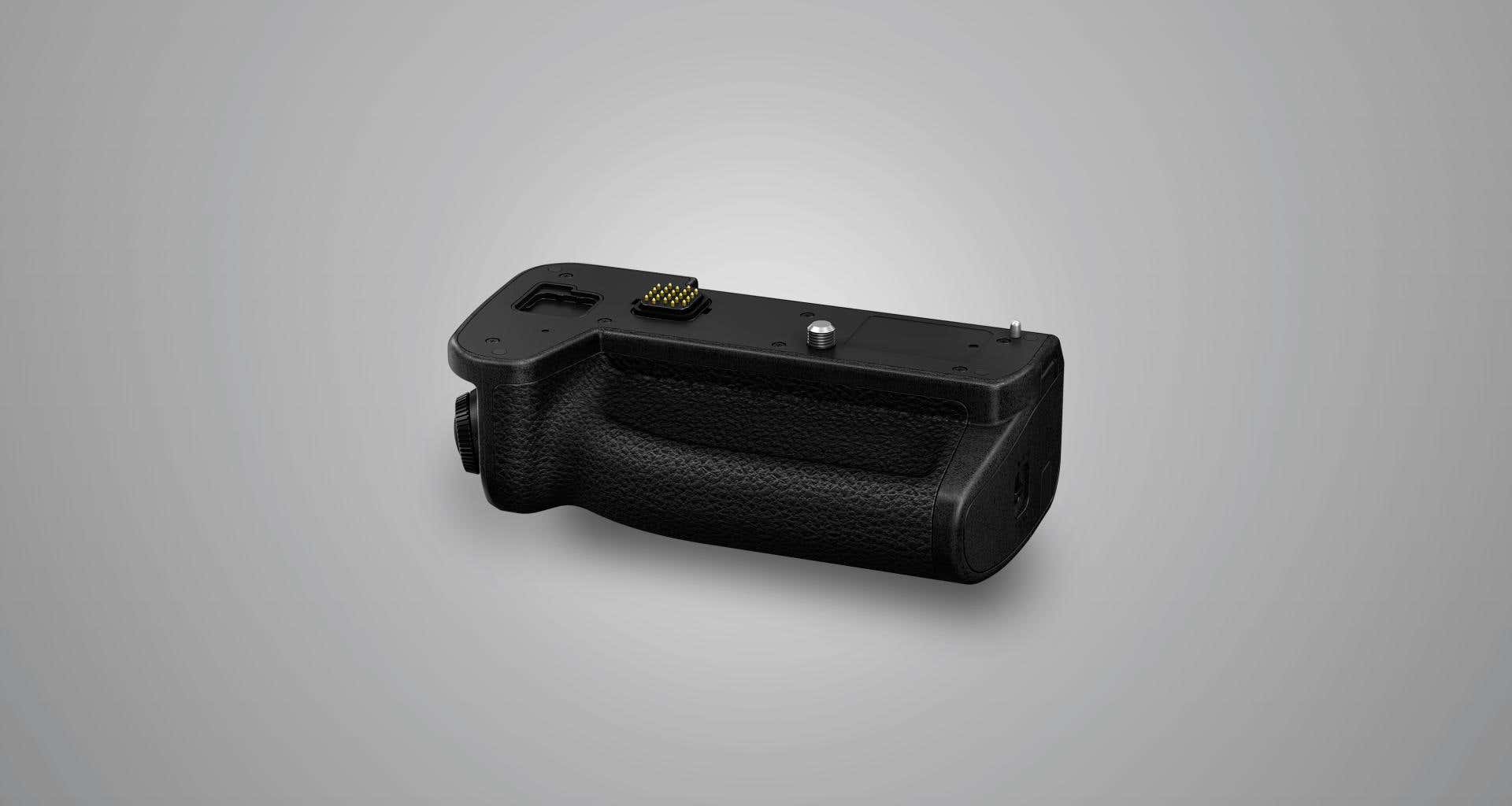

Battery Grip DMW-BG2E
Battery grip for extended shooting time. Compatible with the LUMIX S1RII (DC-S1RM2).
Double Battery System
By using two batteries—one in the camera and the other in the DMW-BG2 battery grip*, the available battery life is doubled for extended shooting. *A battery pack is not included with the DMW-BG2.
Hot Swap Ready
The battery in the DMW-BG2 can be replaced without needing to turn off the camera.
Simultaneous Power Supply
In power-consuming recording modes*, the LUMIX S1RII and the DMW-BG2 batteries supply power simultaneously, enabling more dynamic shooting without the need for external adapters or cables. *For video and S&Q video when set as MOV/MP4 with exceeding a resolution of C4K; or ProRes video with frame rate of 31 fps or above and exceeding a resolution of C4K. For other settings, the DMW-BG2 battery and the camera body battery can be used individually, in that order.
Consistent controls for vertical and horizontal shots

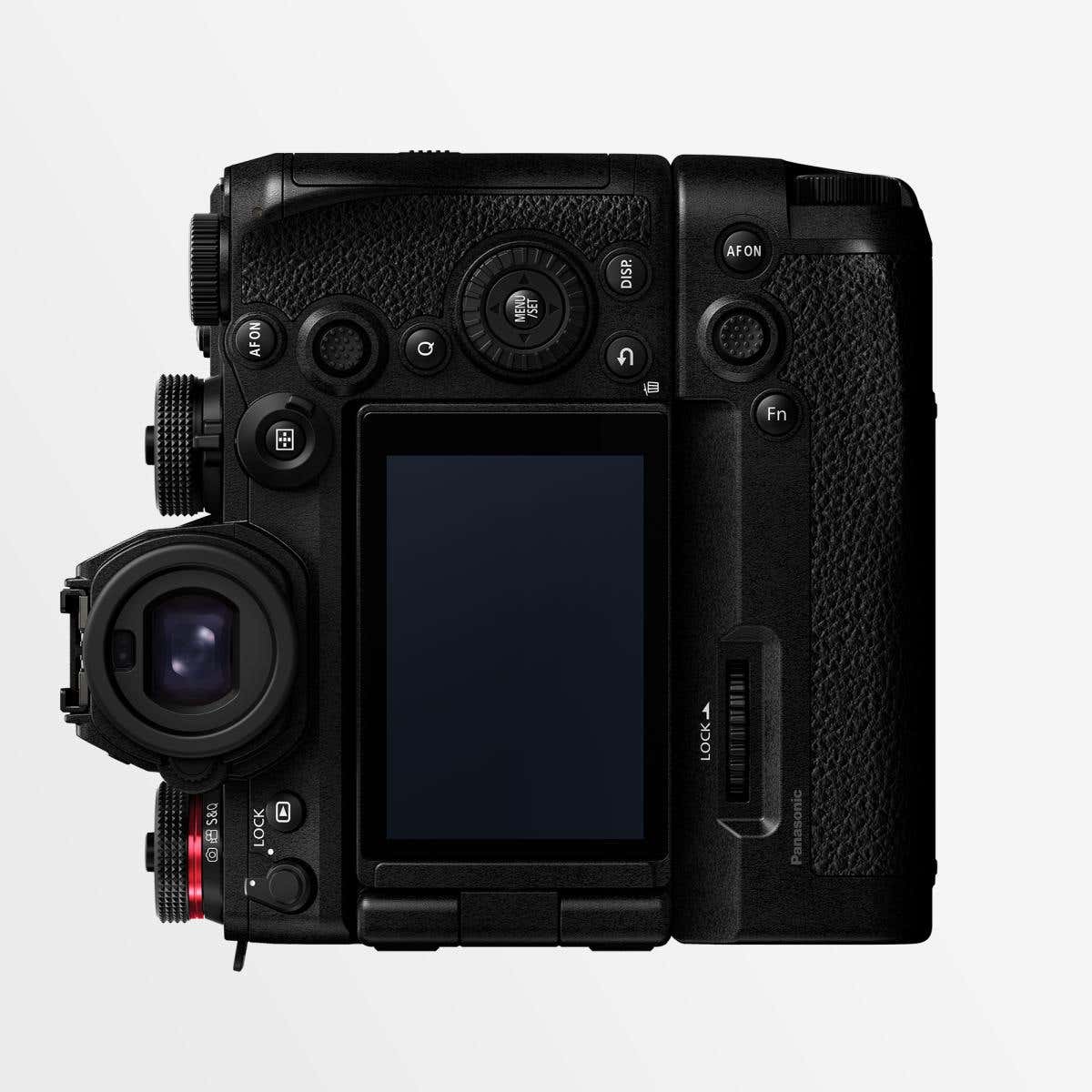

The DMW-BG2 offers the same grip and operability as the camera body. Equipped with a shutter button, dial, 8-way joystick, and more, it facilitates intuitive operation just like in the horizontal position, even when shooting vertically.
-
Extended battery life
-
Buttons, dial and joystick can be used in the same way as the LUMIX S1RII (DC-S1RM2)
-
Dust, splash and freeze-resistant design
Size and Weight
- Height
- 44.7mm
- Width
- 134.2mm
- Depth
- 70.9 mm
- Weight
- 316g
All values are approximate. Weight with battery. Terminal cap is excluded. Body only 236g (with terminal cap). Dimensions exclude protrusions.
| Dimensions (W x H x D) | Approx. 134.2 x 44.7 x 70.9 mm / 5.28 x 1.76 x 2.79 inch (excluding the projecting parts) | ||
| Weight | Approx. 316 g / 0.71 lb (main unit and battery) Approx. 236 g / 0.52 lb (main unit and terminal cap) | ||
| Battery | DMW-BLK22 (li-ion battery pack: 7.2V, 2200mAh, 16Wh) (sold separately) | ||
| Battery Life* (CIPA standard) | Approx. 660 images (rear monitor) with DC-S1RM2 and S-R24105 * One in the camera and another in the battery grip. | ||
| Operation | Operation ON/OFF Switch Shutter Button Joystick AF/AE LOCK Button White Balance Button ISO Sensitivity Button Exposure Compensation Button Front Dial Rear Dial Fn Button | ||
| Dust and Splash Resistant | Yes *Dust and Splash Resistant does not guarantee that damage will not occur if this battery grip is subjected to direct contact with dust and water. | ||
| Operating Temperature | -10 - 40 °C / 14 - 104 °F | ||
| Operating Humidity | 10 - 80 %RH (no condensation) | ||
| Standard Accessory | Terminal Cap | ||
