BATTERY GRIP S5/S5II/G9II
Extended battery life
Buttons and joystick can be used in the same way as the LUMIX S5II (DC-S5M2), LUMIX S5IIX (DC-S5M2X) and LUMIX G9II (DC-G9M2)
Dust, splash and freeze-resistant design

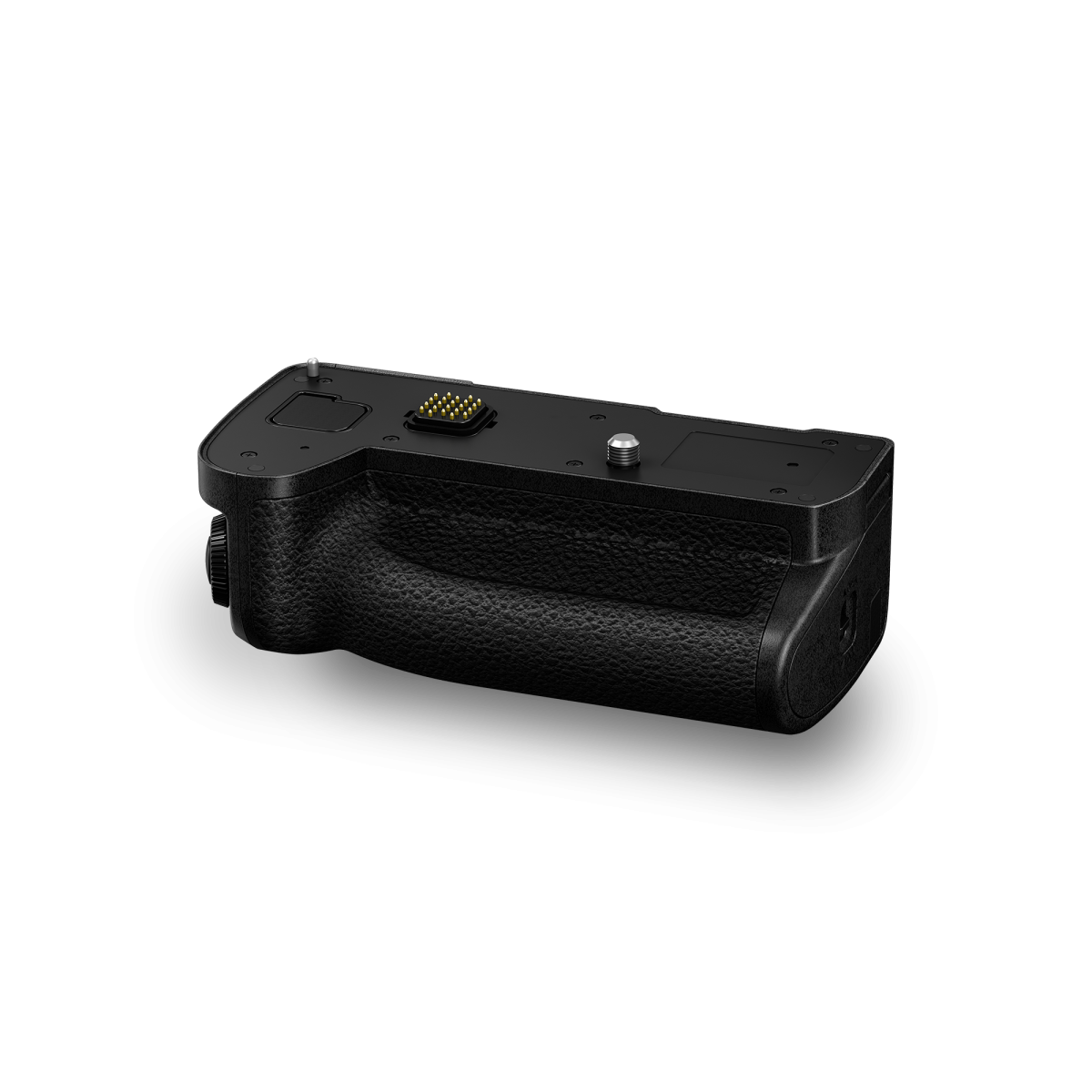

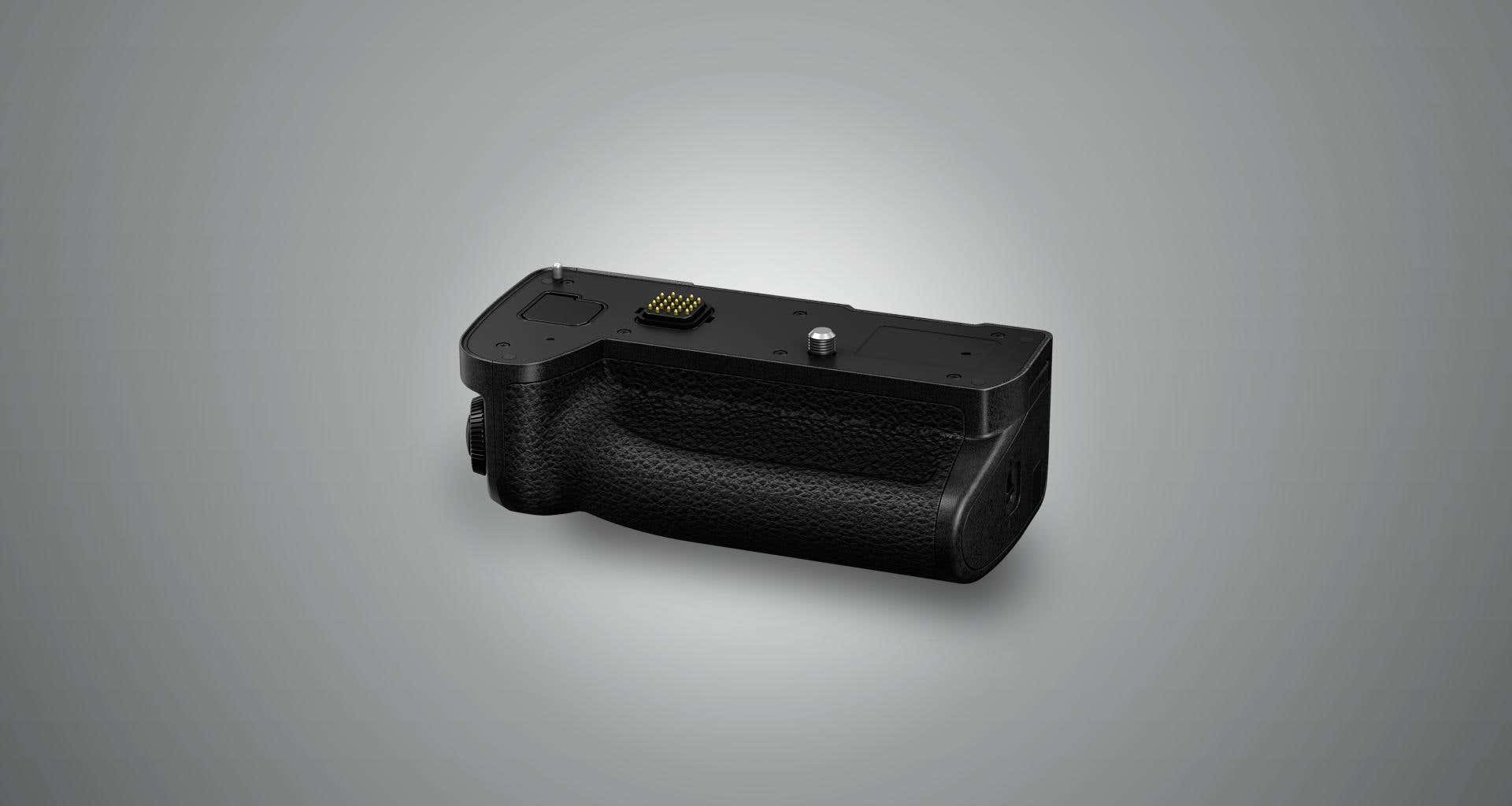

Battery Grip DMW-BG1
Battery Grip for extended shooting time. Compatible with the LUMIX S5II (DC-S5M2), LUMIX S5IIX (DC-S5M2X) and LUMIX G9II (DC-G9M2).
Extended battery life for active outdoor shooting
By using two batteries — one in the camera and the other in the grip*, the DMW-BG1 doubles the battery life for extended shooting. *A battery pack is not included in the DMW-BG1.

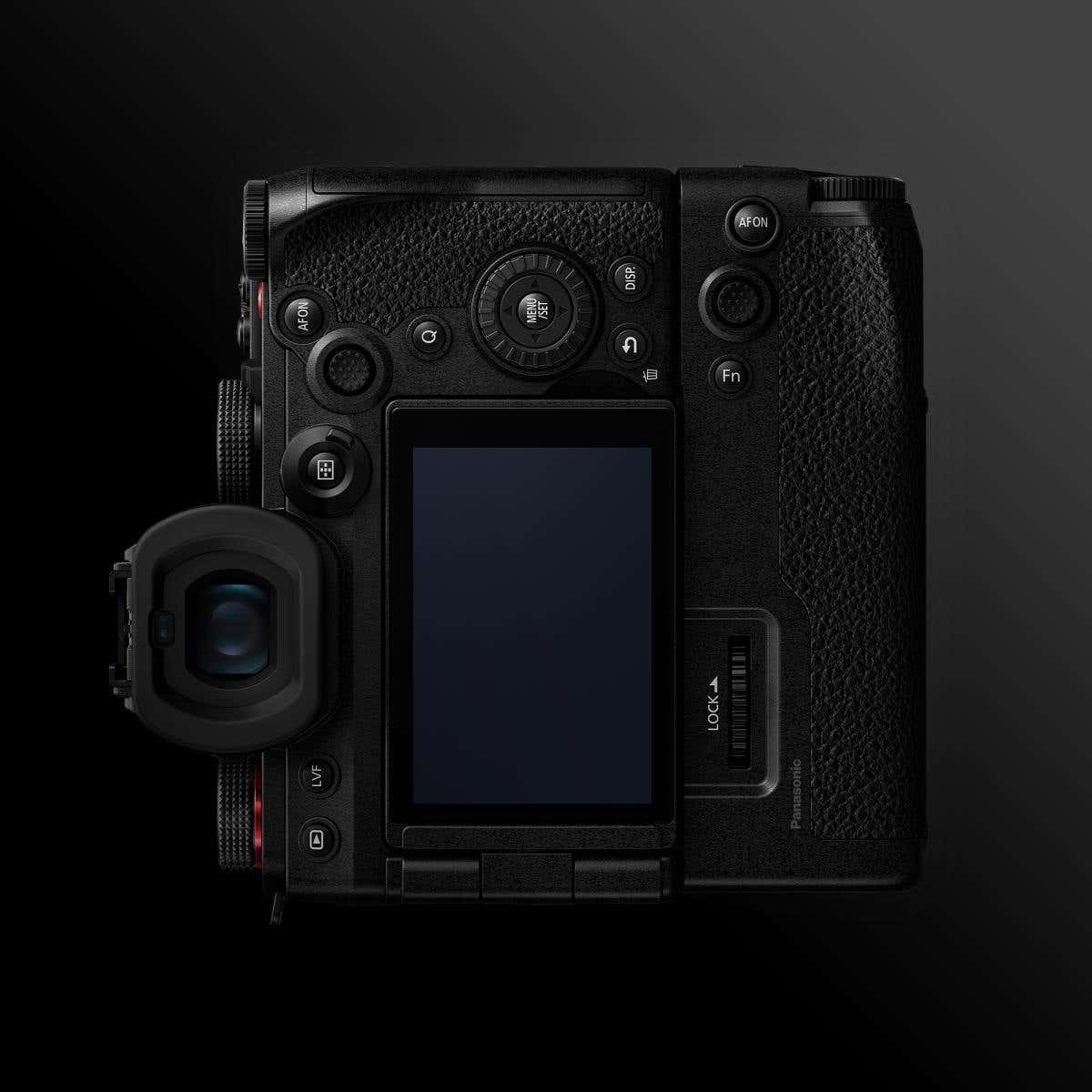

Easy operation, both vertical and horizontal
Easy to grip and access buttons in both horizontal and vertical orientations. The camera also features an 8-directional joystick with the same ease of operation as the camera body.
-
Extended battery life
-
Buttons and joystick can be used in the same way as the LUMIX S5II (DC-S5M2), LUMIX S5IIX (DC-S5M2X) and LUMIX G9II (DC-G9M2)
-
Dust, splash and freeze-resistant design
Size and Weight
- Height
- 45.2mm
- Width
- 132.4mm
- Depth
- 67.6mm
- Weight
- 321.8g
All values are approximate. Weight with battery. Terminal cap is excluded. Body only 242.1g (with terminal cap). Dimensions exclude protrusions.
| Dimensions (W x H x D) | Approx. 132.4 x 45.2 x 67.6 mm / 5.21 x 1.78 x 2.66 inch (excluding the projecting parts) | ||
| Weight | Approx. 321.8 g / 0.709 lb (main unit and battery) Approx. 242.1 g / 0.534 lb (main unit and terminal cap) | ||
| Battery | DMW-BLK22 (li-ion battery pack: 7.2V, 2200mAh, 16Wh) (sold separately) | ||
| Battery Life* (CIPA standard) | Approx. 730 images (rear monitor) with DC-G9M2 and H-ES12060 * One in the camera and another in the battery grip. | ||
| Operation | Operation ON/OFF Switch Shutter Button Joystick AF/AE LOCK Button White Balance Button ISO Sensitivity Button Exposure Compensation Button Front Dial Rear Dial Fn Button | ||
| Dust and Splash Resistant | Yes *Dust and Splash Resistant does not guarantee that damage will not occur if this battery grip is subjected to direct contact with dust and water. | ||
| Operating Temperature | -10 - 40 °C / 14 - 104 °F | ||
| Operating Humidity | 10 - 80 %RH (no condensation) | ||
| Standard Accessory | Terminal Cap | ||
